The WSN Series Steam Heat Tunnels
For Shrink Sleeve Labeling
- Middle, full body and cap shrink applications
- Equipped with multiple steam zones
- Constructed from rugged stainless steel
WSN Series Steam Heat Tunnels for shrink sleeve label and tamper evident band application from American Film & Machinery are designed for middle, full body, and full body and cap shrink applications. The WSN Series includes two machine models, the WSN-300-2M and the larger WSN-300-3M steam heat tunnel. WSN Series tunnels are a perfect addition to shrink labeling lines in manufactured goods industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, and chemical products.
Precision Shrink Labeling
WSN Series Steam Heat Tunnels are designed and manufactured to consistently take on the most difficult shrink labeling operations while keeping energy costs low. Equipped with multiple steam zones and tier adjustable manifolds, WSN tunnels direct the steam heat where needed to produce a precise, high quality finished appearance of PVC, PETG, OPS, and PLA labels and neck bands. Tunnel steam zones can be set independently to ensure a quality finish regardless of container shape or size.
Built For Your Operation
Designed to work as an integral part of your day-to-day packaging operations, the WSN Series Tunnels are constructed from rugged stainless steel and supplied with an adjustable height base support. Installation can be completed in minutes using standard tools to have you up and running saving your company money and increasing your ROI. Due to its versatility, the WSN Series Heat Tunnels are also ideal for the changing needs of contract packagers.

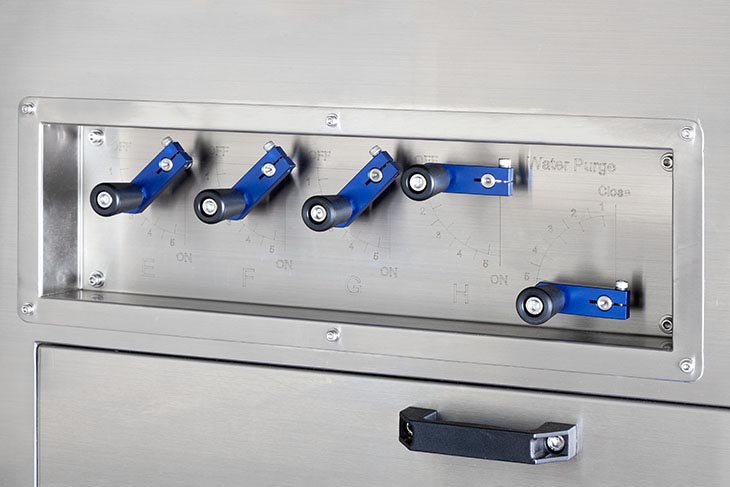

Multiple steam zones and adjustable tier manifold direct steam heat where needed to produce a precise, high quality finish.

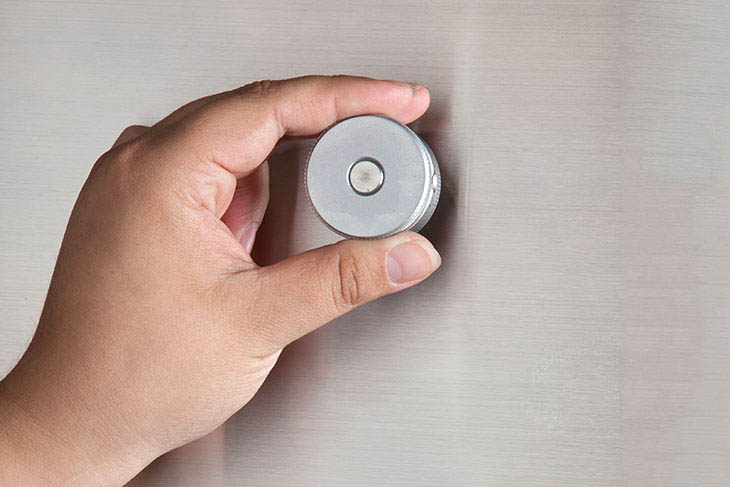

Steam exhaust is controlled by the turn of a knob to adjust to your shrink application.

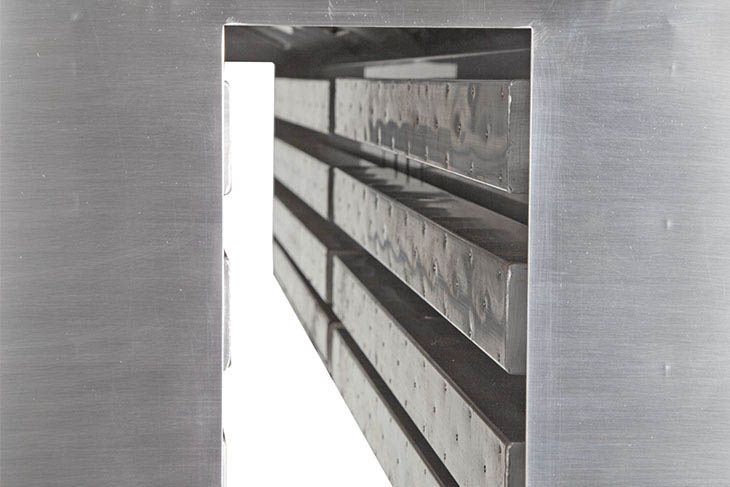

High quality steam elements provide direct and efficient steam heat where needed regardless of container shape or size.

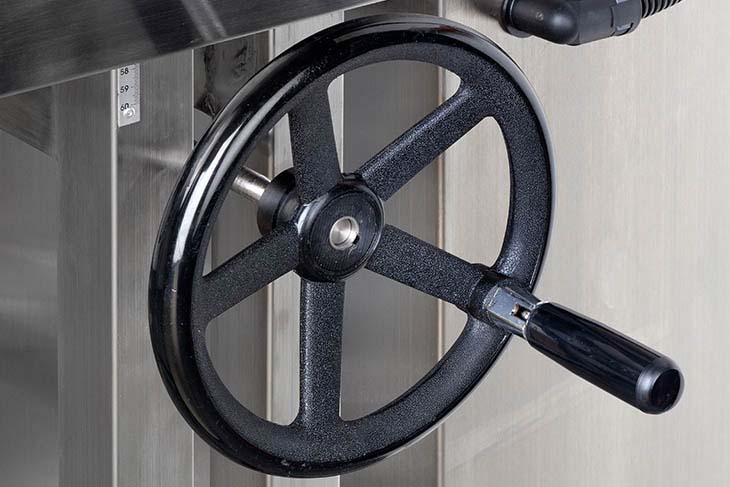

Easy-to-use hand crank allows for height adjustment to accommodate virtually any conveyor.
WSN-300-2M
TECHNICAL SPECIFICATIONS OF THE WSN-300-2M
- Zones & Tiers: 2 zones with 4 tiers
- Machine Dimensions: 900mm (W) x 2000mm (L) x 2100mm (H) 35.5” (W) x 79” (L) x 83” (H)
- Tunnel Dimensions: 130mm (W) x 2000mm (L) x 300mm (H) 5” (W) x 79” (L) x 12” (H)
- Steam Pressure: 3-4 kg/cm 43-57 psi
- Water Consumption: 200 L/Hr 52 Gal/Hr
WSN-300-3M
TECHNICAL SPECIFICATIONS OF THE WSN-300-3M
- Zones & Tiers: 2 zones with 4 tiers
- Machine Dimensions: 900mm (W) x 3000mm (L) x 2100mm (H) 35.5” (W) x 118” (L) x 83” (H)
- Tunnel Dimensions: 130mm (W) x 3000mm (L) x 300mm (H) 5” (W) x 118” (L) x 12” (H)
- Steam Pressure:3-4 kg/cm 43-57 psi
- Water Consumption: 300 L/Hr 80 Gal/Hr
