Automatic Bundling
Professional Series EB35A EB50A EB70A EB80A
- 35”, 50”, 70″, and 80” wide hot knife seal system
- 22” adjustable product pass through height
- Upper and lower powered film unwind for smooth feed of film
- Film loading from left or right side
- Color PLC touchscreen operation for easy adjustments
- Self tracking conveyor belt and product indexing
- Flexibility for fully automatic or single product operation
- 4’ conveyor length standard
- All-welded main frame from 1/4” cold rolled steel
BUILT RIGHT...PRICED RIGHT
Proven reliable over and over again, Eastey’s automatic bundler provides you with all the quality features found in much higher priced machines. They are designed and built to give you all the features needed for positive sealing of polyethylene film.
RUGGED DESIGN
EASTEY’S automatic bundler’s are expertly welded on 1/4” cold rolled steel frames and designed to handle the day to day abuse of even the most demanding bundling applications. Each bundler utilizes two rolls of single wound film mounted on the same side of the machine and an upper and lower power film unwind for ease of use. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 35 years.

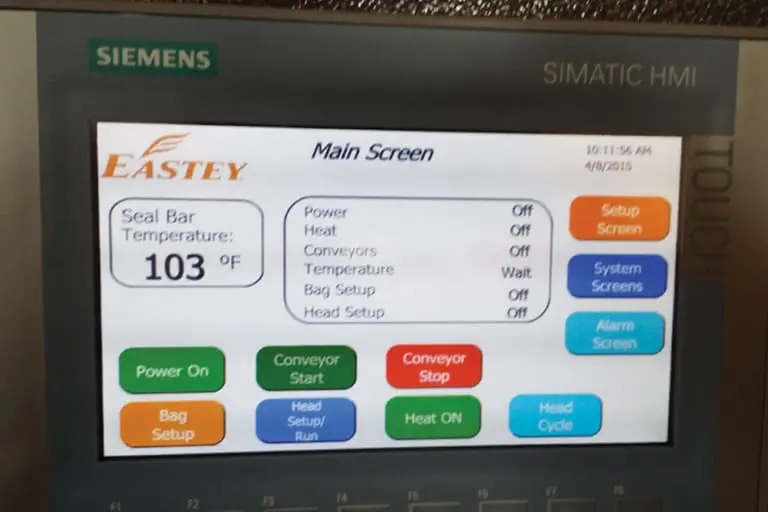

Color PLC touchscreen can be password protected if needed.

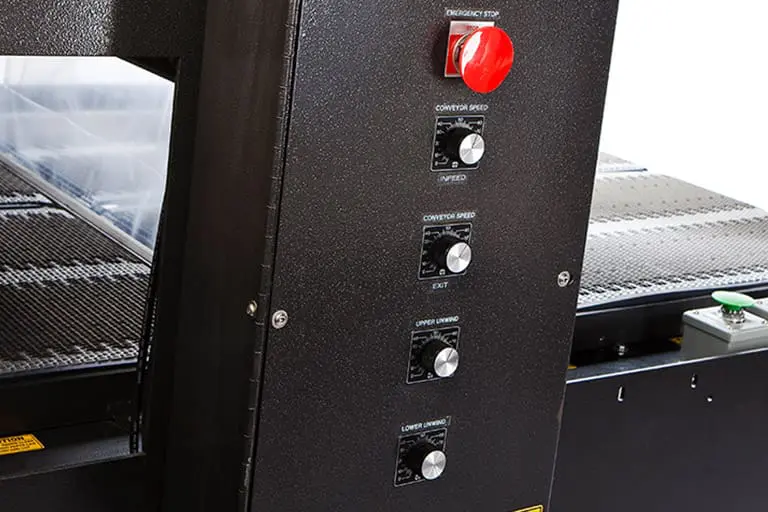

Easy to use control panel lets users adjust dwell time and temperature settings for their specific application.

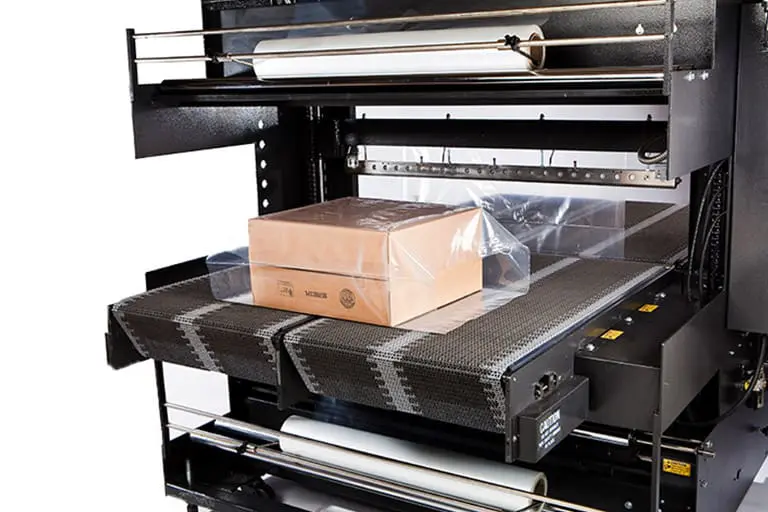

Exit conveyor transfers the package into a recommended Eastey shrink bundling tunnel to produce a very tight and secure package.

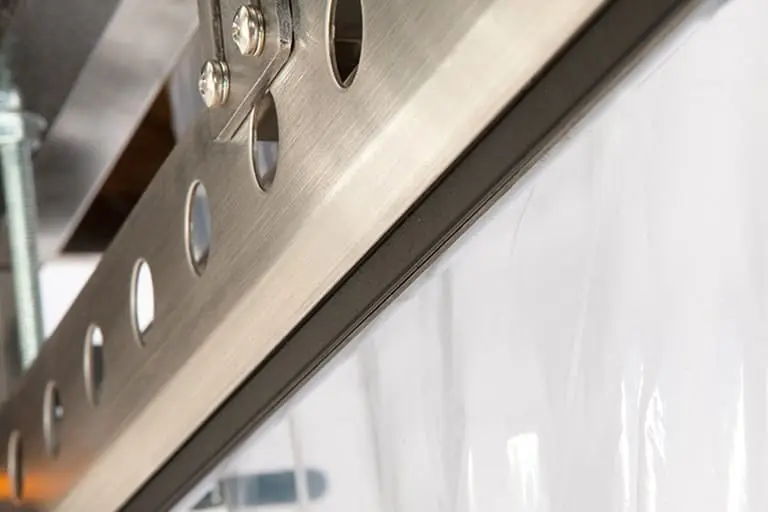

35”, 50”, 70″, & 80”, hot knife seal system ensures a clean, positive, and even seal every time.
Samples
Features
- Designed to seal polyethylene films
- 35”, 50”, 70″, and 80” wide hot knife seal system
- 22” adjustable product pass through height
- Upper and lower powered film unwind for smooth feed of film
- Film loading from left or right side
- Color PLC touchscreen operation for easy adjustments
- Self tracking conveyor belt and product indexing
- Flexibility for fully automatic or single product operation
- 4’ conveyor length standard
- 78” max film width
- 12” max film OD
- All-welded main frame from 1/4” cold rolled steel
- Bases supplied with locking casters for easy transport
- Leveling legs to provide study base
- Durable custom two-part epoxy finish resists scratching
- 220v standard. Optional 480V
- Made in the USA
- Easy to use design requires minimal training, maintenance, and trouble free operation
Options
- Additional 4” seal head height
- Additional 2” seal bar length extension
- Optional product guides
- Interlocked guard doors
- Product hold down
- Single belt option for infeed and exit conveyor
- Extended Infeed or Exit conveyor length
- Left or right angle infeed conveyors available
- Manual infeed available
- Dual film rack or pull out film rack
- Low film indicator
- Additional E-Stop button
- Optional password protection
- UL approved electronics and control box
- Left hand machines available
- Custom sizes and configurations available upon request

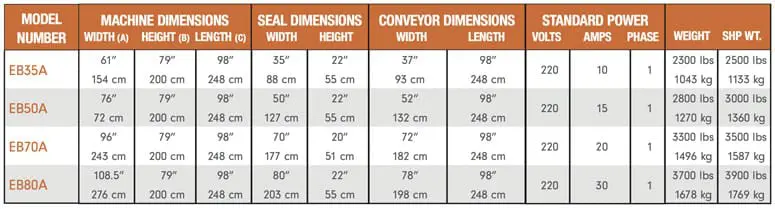

Model Specs
Why Choose Adaptive?
As a distributor of Eastey packaging equipment, Adaptive supplies a full range of Eastey machines along with the films, strapping and consumables needed for day-to-day operation. Working with Adaptive means streamlined ordering, product knowledge and dependable access to both equipment and ongoing supplies.
For customers looking to go beyond standalone equipment, Adaptive also offers optional integration services. Whether connecting Eastey equipment to conveyors or incorporating it into a larger packaging system, integration can be provided at an additional cost based on project scope.
