Eastey TT Series
Rotary Accumulation Tables
- Accommodates product accumulation or surge back-up
- Available with 36” or 48” diameter turntable
- Stainless steel turntable
- Tubular steel frame
- Variable speed motor
- Dual direction drive for clockwise/counter-clockwise operation
RELIABLE PRODUCT HANDLING
Eastey’s variable speed accumulation tables are an ideal solution for product accumulation or surge back-up. Models are available in 36” or 48” diameters.
THE RIGHT SOLUTION
Rugged design. Variable control. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey to provide the right solution for your product handling needs.
DESIGNED FOR YOUR PRODUCTION LINE
Eastey’s accumulation tables are used to temporarily stop, hold, and release bottles, cans, jars, or other containers after they are filled or cleaned. Eastey’s accumulation tables are an efficient method to balance production line rates, allowing production to continue while downstream product is halted. They also facilitate
product removal for packing and prevent product damage that can occur when a production line is stopped.
INDUSTRIAL STRENGTH OPERATION
TT36 and TT48 accumulation tables offer the quality that you have come to rely on from Eastey. A stainless steel turntable, variable speed motor, dual direction drive, and simple design make Eastey’s accumulation tables a workhorse that will stand up to your toughest challenges. Each table is framed with tubular steel to withstand even the most rugged applications. A powder coated exterior protects the machine base from abusive conditions and guarantees years of use. For food applications, an optional stainless base is available.

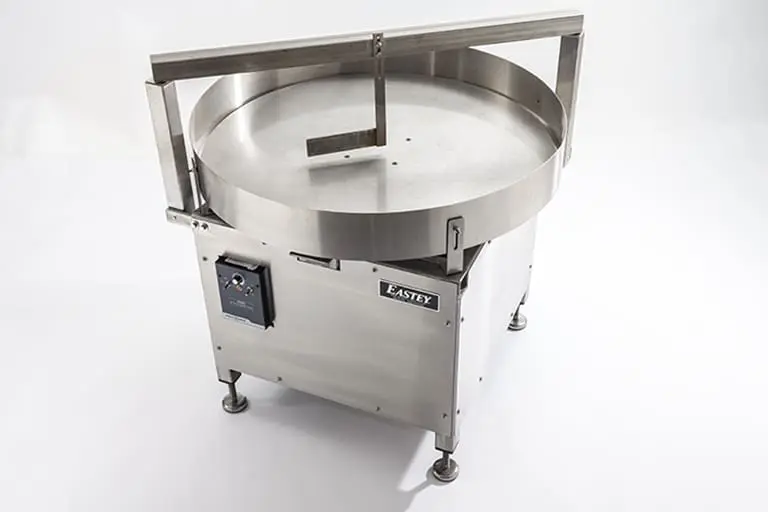

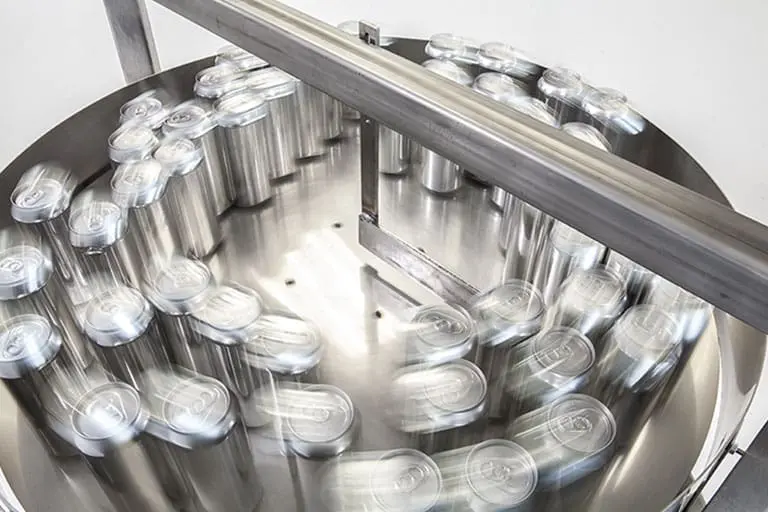

Overhead frame and divider paddle guides product to the outer edge as needed.

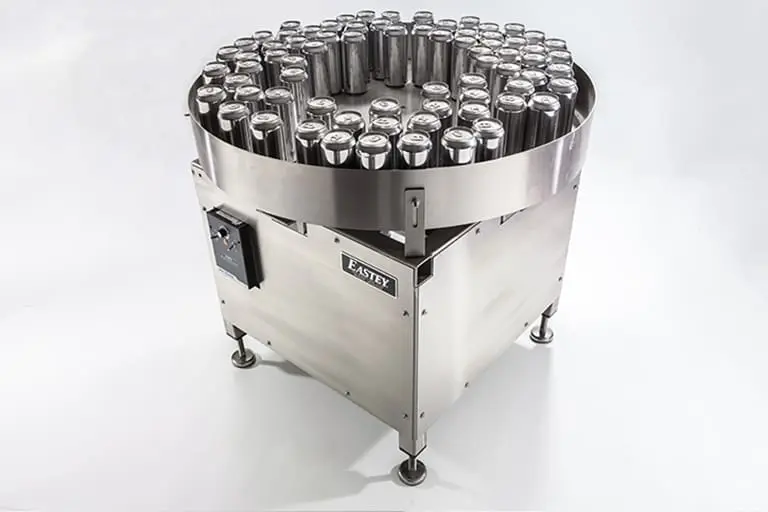

Stainless steel turntables are available in 36” or 48” diameters.
Dual direction drive allows turntable to run clockwise or counter-clockwise.

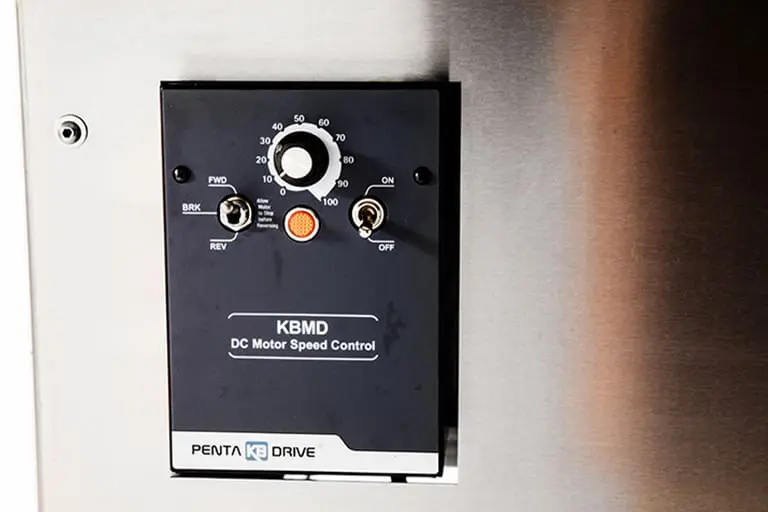

Simple control panel with variable speed drive allows integration with nearly every packing line.
Samples
Benefits
- Large 36” or 48” diameter turntable tub with adjustable 5” deep sidewall
- Adjustable side guides
- Easy to clean stainless steel tub
- Variable speed drive
- Dual direction drive for clockwise / counter-clockwise operation
- Smooth, consistent turntable speed
- Adjustable leveling feet or optional casters
- Adjustable height (27” to 37”)
- Single plug 115V power supply
- Heavy duty rugged design
System
- Model TT36 – 36.0” table diameter, 24.0” base length, 24.0″ base width, 260 lbs. weight
- Model TT48 – 48.0” table diameter, 24.0” base length, 24.0″ base width, 340 lbs. weight
- Machinery Makeup – Industrial strength tubular steel frame with powder coated steel base; or optional stainless steel base for food applications
- Working Height – Adjustable 27” to 37” height
- Variable Speed – Up to 13 revolutions per minute
- Electrical Requirements – 115V or 220V, 5A single phase with ground
- Approximate Weight Capacity – 200 lb. maximum weight @ 80% Speed
Optional Accessories
- Transfer Plate – Butts up to the conveyor to provide a smooth transfer onto the Accumulation Table
- Dead Plate – Small plate that accumulates products in a row for the user to quickly grab for packing
- Packout Table – Larger table that accumulates products for the user to grab for packing; holds more products than the Dead Plate
- Product Diverter – Pushes product to the outer edge of the Accumulation Table
- Product Wedge – Pushes product to the middle of the Accumulation Table
- Casters – Lockable casters for easy movement throughout the plant
- Stainless Base – All stainless-steel base for food applications
Why Choose Adaptive?
As a distributor of Eastey packaging equipment, Adaptive supplies a full range of Eastey machines along with the films, strapping and consumables needed for day-to-day operation. Working with Adaptive means streamlined ordering, product knowledge and dependable access to both equipment and ongoing supplies.
For customers looking to go beyond standalone equipment, Adaptive also offers optional integration services. Whether connecting Eastey equipment to conveyors or incorporating it into a larger packaging system, integration can be provided at an additional cost based on project scope.
