Eastey C Series
Variable Speed Conveyors
- Infeed or exit feed conveyor for case taping or shrink wrapping equipment
- Variable speed drive motor up to 100 fpm
- Magnetic control box can be mounted on either side of conveyor
- Utilizes endless belt with self-tracking V-groove for consistent alignment
- Bump and turn option available
RELIABLE PRODUCT TRANSPORT
Eastey’s variable speed conveyors offer the quality that you have come to rely on from Eastey. The Eastey conveyors offer a reliable stand-alone product transport for primary or secondary product marking, and make a convenient add-on infeed or exit feed conveyor to existing case taping or shrink wrapping equipment.
DESIGNED FOR INK JET APPLICATIONS
Eastey’s conveyor design is perfect for integration with ink jet printing equipment. Each conveyor comes pre-drilled in multiple locations to easily add printer and encoder mounting brackets. The smooth drive belt provides consistent speed for reliable, scannable barcoding and product transfer. Systems include a lower shelf with holes for cable management and provide storage for supplies
such as spare printheads, printer and UV LED controlboxes, spare ink, and more.
EASE OF USE
Eastey conveyors utilize an endless belt with self-tracking V-groove for consistent alignment. The variable speed drive motor is adjustable up to 100 fpm for a variety of applications. The unit also features a magnetic control box that can be mounted on either side of the conveyor. Conveyor legs are adjustable from 20” up to 33.5”. The system is designed to keep maintenance to a minimum
and provide a fast and efficient method of product transport.
INDUSTRIAL STRENGTH OPERATION
Heavy-duty motor, industrial strength drive belt, and a simple design make Eastey Series Conveyors a workhorse that will stand up to your toughest challenges. Each conveyor is made from ¼” steel that will withstand even the most rugged applications. A custom two part epoxy finish protects the machine from abusive conditions and ensures years of use.

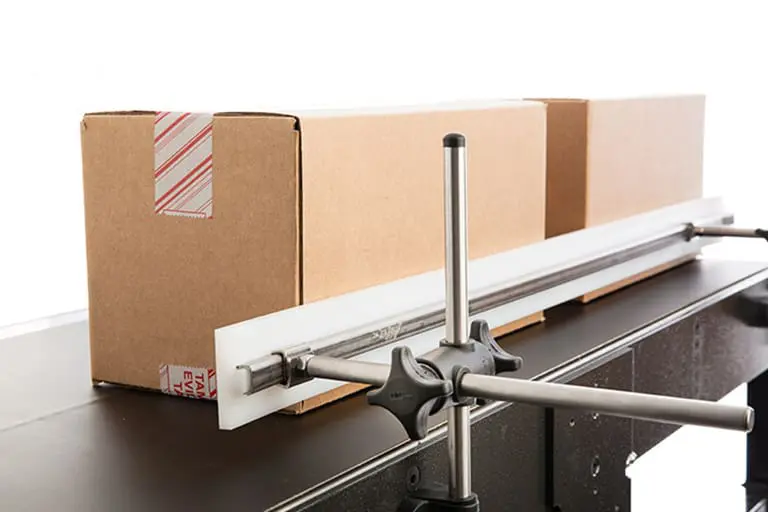

Single or dual optional side rails are available for box or primary product guidance.

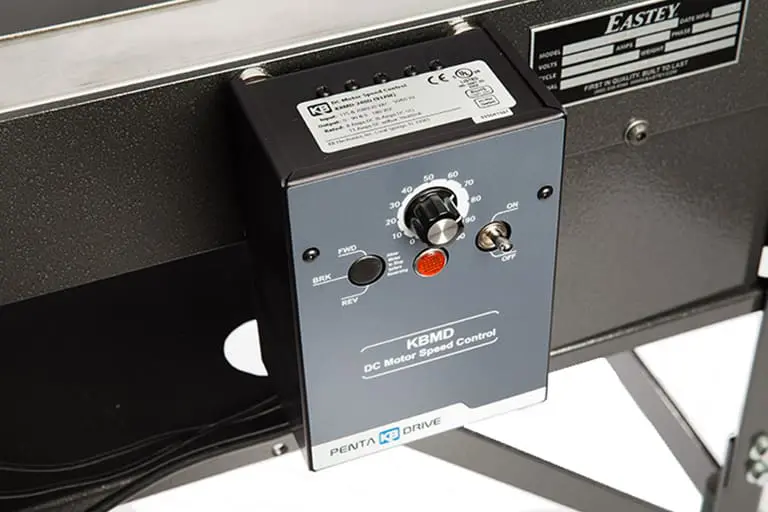

Magnetic control box can be mounted on either side of conveyor.

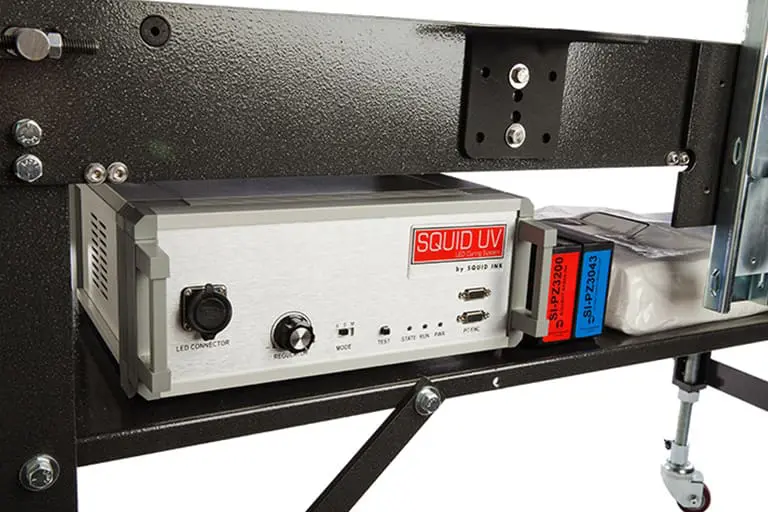

Shelf included for storage such as spare print heads, printer and UV LED control boxes, spare ink, and more.
Included extrusion rail makes for easy for integration with ink jet printers and other equipment.
Samples
Features
- Magnetic control box mounting
- Extrusion rail to easily mount ink jet printing systems and guide rails
- Pre-drilled hole for encoder mounting
- Shelf for various storage
- Small space-saving footprint
- Seamless self-tracking belt
- ¼” cold rolled steel
- Variable speed drive
- Optional guide rails available
- Safety cover over pinch points
- Smooth, consistent belt speed
Conveyor Specs
- Machinery Makeup – Industrial strength 12 gauge steel, powder coated for durability
- Variable Speed – Up to 100 fpm
- Conveyor Height Adjustment – legs and casters ordered separately:
- With 9” leveling legs: 20” – 33.5” (50.8cm – 85.1cm)
- With 9” legs and casters: 24” – 37.5” (61cm – 95.3cm)
- With 17” leveling legs: 28” – 41.5” (71.1cm – 105.4cm)
- With 17” legs and casters: 32” – 45.5” (81.2cm – 115.6cm)
- Electrical Requirements – 110V 5A Single Phase
- Max Weight Capacity:
- C1248, C1848, C2430 & C2472 90 lbs. maximum weight
- C1272, C1872 100 lbs. maximum weight
Models
- Model C1248 – 48.9″ (Length) 20.2″ (Width) 12″ (Conveyor Width) 160 lbs. (Weight)
- Model C1272 – 72″ (Length) 20.2″ (Width) 12″ (Conveyor Width) 175lbs. (Weight)
- Model C1848 – 48.9″ (Length) 26.2″ (Width) 18″ (Conveyor Width) 175 lbs. (Weight)
- Model C1872 – 72″ (Length) 26.2″ (Width) 18″ (Conveyor Width) 260 lbs. (Weight)
- Model C2430 – 30″ (Length) 32.2″ (Width) 24″ (Conveyor Width) 220 lbs. (Weight)
- Model C2472 – 72″ (Length) 32.2″ (Width) 24″ (Conveyor Width) 300 lbs. (Weight)
Optional Accessories
- Leveling Legs and Casters – Leveling legs and lockable casters for adjustable height and easy movement throughout the plant
- Additional Printhead Mounting Plate – Predrilled to mount full family of Squid Ink Printing Systems
- Guide Rails – Heavy-duty adjustable height and reach to align product for consistent print (sold separately per side)
- E-Stop – Large safety mechanism to shut off conveyor immediately
