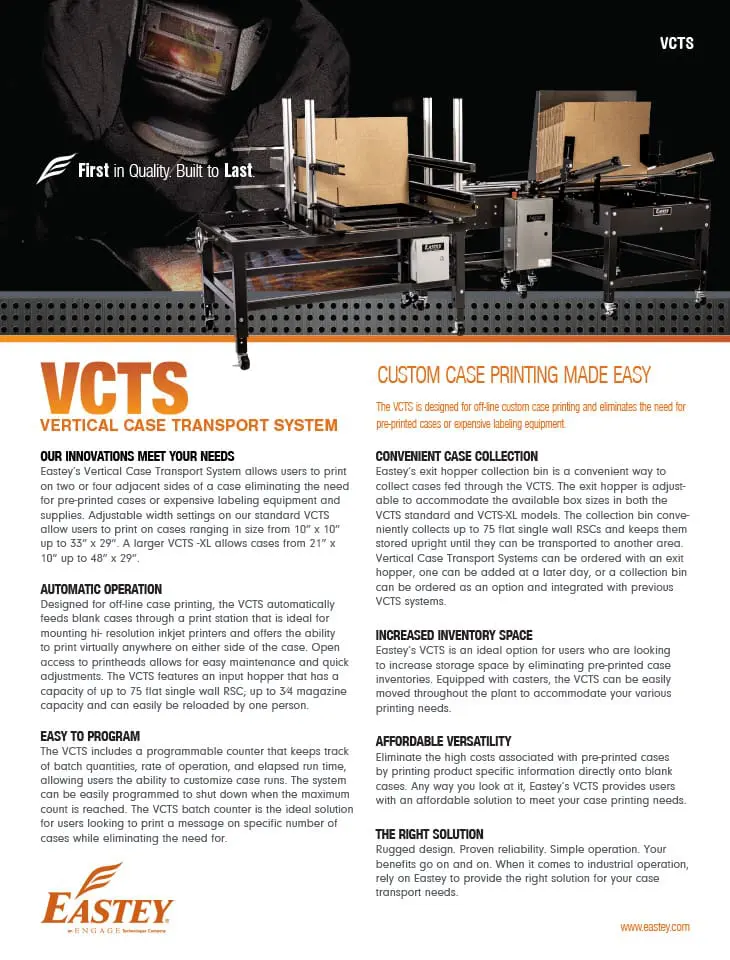

VCTS
Vertical Case Transport System
- Used for off-line case printing or labeling
- Ability to print or label all four panels of a case
- Holds up to 90 flat cases (single wall)
- Simple control interface
- Jog and Run mode
- Programmable counter for batch runs, rate metering, and elapsed counting
- Can be programmed to shut down at max count
- Emergency stop button for safe operation
OUR INNOVATIONS MEET YOUR NEEDS
Eastey’s Vertical Case Transport System allows users to print on two or four adjacent sides of a case eliminating the need for pre- printed cases or expensive labeling equipment and supplies. Adjustable width settings on our standard VCTS allow users to print on cases ranging in size from 10” x 10” up to 33” x 29”. A larger VCTS -XL allows cases from 21” x 10” up to 48” x 29”.
AUTOMATIC OPERATION
Designed for off-line case printing, the VCTS automatically feeds blank cases through a print station that is ideal for mounting hi- resolution inkjet printers and offers the ability to print virtually anywhere on either side of the case. Open access to printheads allows for easy maintenance and quick adjustments. The VCTS features an input hopper that has a capacity of up to 75 flat single wall RSC; up to 3⁄4 magazine capacity and can easily be reloaded by one person.
EASY TO PROGRAM
The VCTS includes a programmable counter that keeps track of batch quantities, rate of operation, and elapsed run time, allowing users the ability to customize case runs. The system can be easily programmed to shut down when the maximum count is reached. The VCTS batch counter is the ideal solution for users looking to print a message on specific number of cases while eliminating the need for.
CONVENIENT CASE COLLECTION
Eastey’s exit hopper collection bin is a convenient way to collect cases fed through the VCTS. The exit hopper is adjustable to accommodate the available box sizes in both the VCTS standard and VCTS-XL models. The collection bin conveniently collects up to 75 flat single wall RSCs and keeps them stored upright until they can be transported to another area. Vertical Case Transport Systems can be ordered with an exit hopper, one can be added at a later day, or a collection bin can be ordered as an option and integrated with previous VCTS systems.
INCREASED INVENTORY SPACE
Eastey’s VCTS is an ideal option for users who are looking to increase storage space by eliminating pre-printed case inventories. Equipped with casters, the VCTS can be easily moved throughout the plant to accommodate your various printing needs.

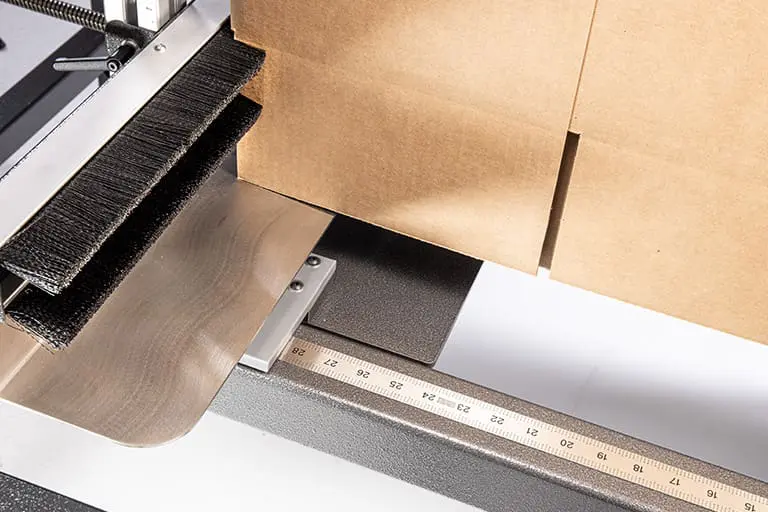

Adjustable collector bin with ruler to easily switch between different width cases.

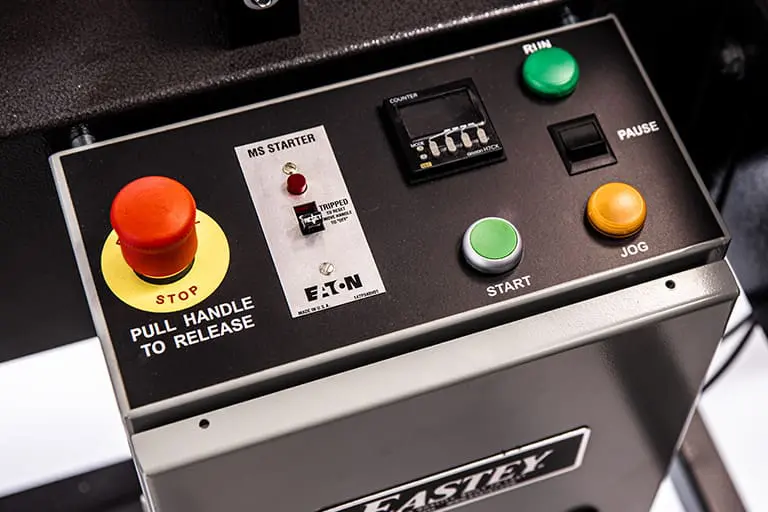

Simple and rugged control interface for easy operation.

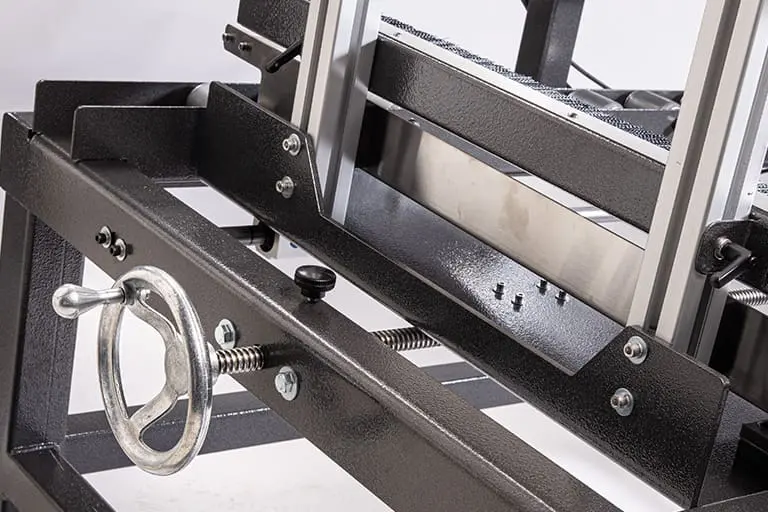

Hand crank wheel easily adjusts width of collector bin.

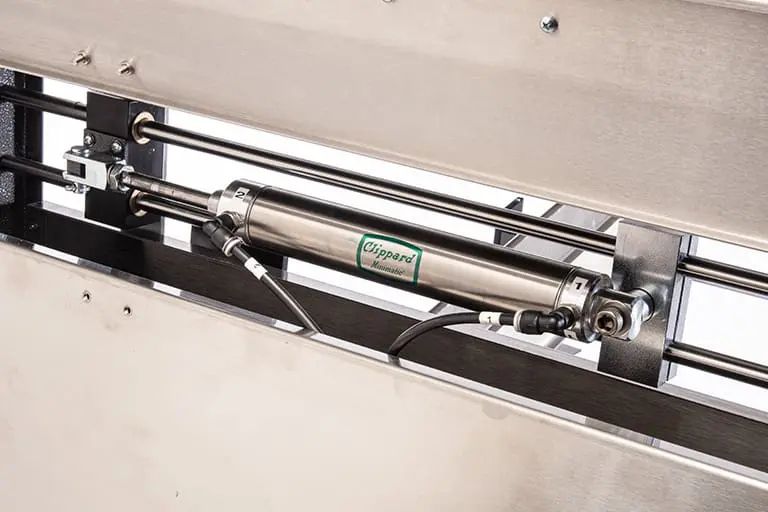

Pneumatic pusher arm can be adjusted for different width cases.
Case Handling Samples
Benefits
BENEFITS OF THE JETSTREAM
- Up to 5 lines of print
- Line speeds up to 1000 ft/min
- Simple to use 10.1″ color touchscreen interface
- Automatic start-up and shut-down maximizes uptime
- Simple maintenance with quick disconnect replacement components
System
SYSTEM SPECIFICATIONS
- Print Technology – Continuous Ink Jet
- Nozzle Size – µm nozzle standard
- Print Speed – Up to 1,000 feet/minute (305 m/min) 5 x 5 single line
- Max Print Lines – 5 lines at 5 x 5 font, 4 lines at 7 x 5 font
- Font Matrix Configurations – 5 x 5, 7 x 5, 9 x 7, 12 x 12, 16 x 16, 24 x 24, 32 x 32
- Character Height – 0.07″ – 0.59″ (1.8 mm – 15 mm); up to 32 dot high font with single line of text
- Throw Distance – up to 1.2″ (30 mm) distance from printhead to substrate
- Display – 1280 x 800, 10.1″ LCD touchscreen
- Message Storage – 8GB
- Software Features – Bar codes, graphics, counter, lot counter, shift code, time and date, expiration date
- Operating Features – One button print start/stop, contrail print delay, reverse print, invert print, bold print, auto-start self-clean
- CleanJet™ – Quick and easy one button start/stop process for automatic self-cleaning operation
- Communication Inputs – Photocell/tigger, encoder, reverse print, BCD select, RS232, reset counter
- Communication Outputs – Alarm light (3-color), print ready, warning
- Ports – Encoder, photocell, serial and alarm beacon, I/O, network and USB connections
- Printhead – Compact and durable stainless steel design, omni-directional print capability
- Printhead Dimensions – 9.25″ (23.5 cm) long, 1.5″ (3.8 cm) in diameter
- Printhead Cable – Vinyl-covered armored conduit; 9.8′ (3 m) umbilical length standard; 13.1′ (4 m) optional
- Cabinet Construction – Stainless steel cabinet
- Electrical Dimensions – 90 – 240 VAC, 50/60 Hz
- Operating Environment – 41ºF – 113ºF (5ºC – 45ºC)
- Humidity Range – 30 – 95% relative humidity, non-condensing
- Weight – 53 lbs. (24 kg)
- Inks – Comprehensive range of inks for a variety of applications and industry requirements including MEK, Acetone and Ethanol-base; colors and soft pigment formulations available no chips or RFID tags to deal with
- Warranty – Two year warranty from the date of shipment
Optional Accessories
OPTIONAL ACCESSORIES
- Print Trigger – Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
- Encoder – For operation with variable speed conveyors
- Low Ink Light – Alerts users of low ink situations
- Mounting Brackets – Fully adjustable printhead floor stand eliminates vibration from conveyor
- Stands – Stainless cart with two shelves to hold CIJ cabinet and supplies, includes casters
- Printhead Pressurization Kit – Requires plant air
- Four-Port USB Hub – Provides 3 additional USB ports
- Alarm Beacon – Optional warning light with bracket
