SB-2EX Random
Side Belt Case Taper
- Box depth memory function
- Belt Speed – 75 feet/per minute
- Tape Speed – 15 – 20 cases/per minute, depending on box size and operator efficiency
- Height Adjustment – Standard adjustable legs for 21.2” to 34.6” conveyor heights
OPERATOR EFFICIENCY
Eastey’s SB-2EX Random allows users to run a variety of case sizes without having to manually adjust for each box. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
WIDE STANDARD CASE RANGE
The SB-2EX Random’s side belts are great for heavy weight, narrow, or small boxes. It is ideal for void-fill random cases where the packaged product does not support the box. SB-2EX Random is designed to handle boxes that most other case tapers can’t.
PRODUCTION MEETS VERSATILITY
Dual 1/4 drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX Random a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from
abusive conditions and guarantees years of use. Best of all, the SB-2EX Random is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing
INDUSTRIAL STRENGTH OPERATION
Dual 1/4 drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX Random a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX Random is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
INCREASE YOUR ROI
SB-2EX Random is designed and built with the customer in mind. Top and bottom tape heads are interchangeable and are designed for easy tape threading. These machines accept 2” wide pressure-sensitive tape as a standard, or can be field convertible to 3” tape heads for wider case taping applications. Operators can learn to use Eastey’s SB-2EX Random case taping machine in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.

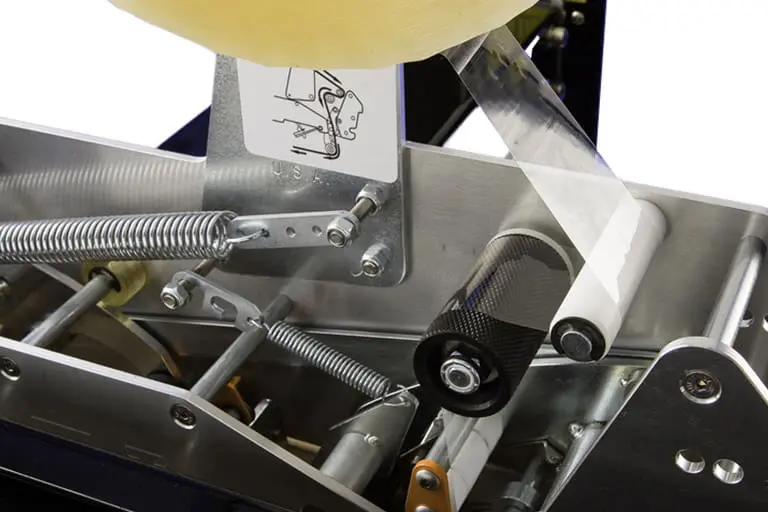

Top and bottom tape heads are interchangeable and tip back for easy threading.
Side rail width and tape head height adjustments are made automatically on the fly.

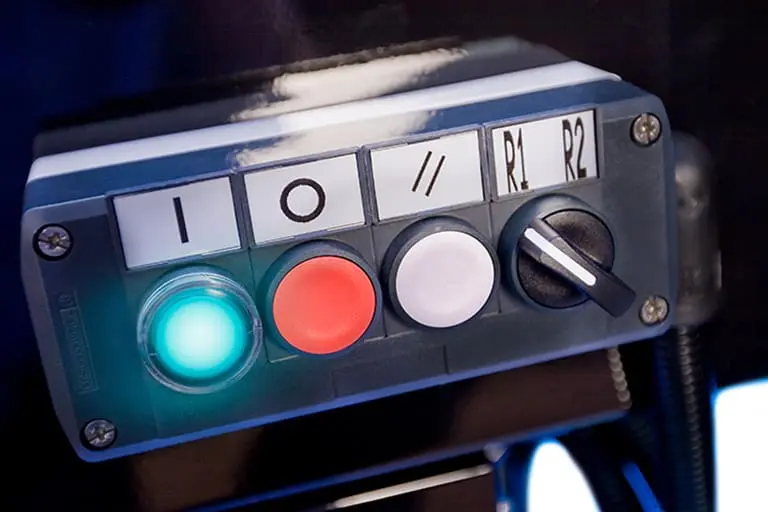

R1 memory function eliminates full travel of the tape head and reduces wear on the machine.

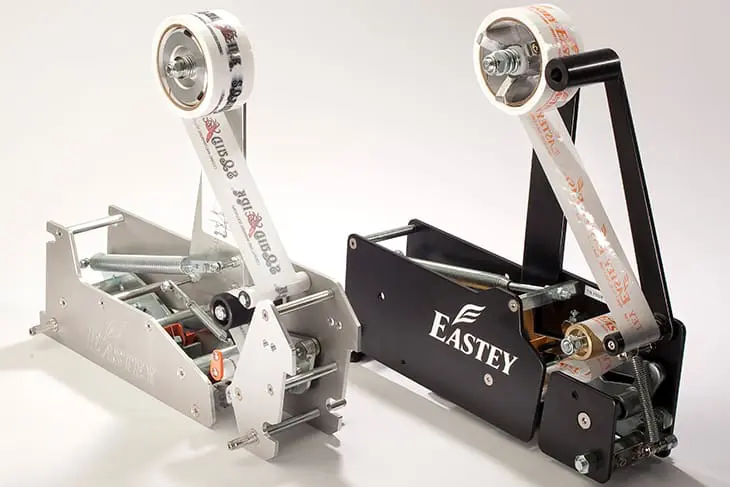

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.
Benefits
BENEFITS OF THE JETSTREAM
- Up to 5 lines of print
- Line speeds up to 1000 ft/min
- Simple to use 10.1″ color touchscreen interface
- Automatic start-up and shut-down maximizes uptime
- Simple maintenance with quick disconnect replacement components
System
SYSTEM SPECIFICATIONS
- Print Technology – Continuous Ink Jet
- Nozzle Size – µm nozzle standard
- Print Speed – Up to 1,000 feet/minute (305 m/min) 5 x 5 single line
- Max Print Lines – 5 lines at 5 x 5 font, 4 lines at 7 x 5 font
- Font Matrix Configurations – 5 x 5, 7 x 5, 9 x 7, 12 x 12, 16 x 16, 24 x 24, 32 x 32
- Character Height – 0.07″ – 0.59″ (1.8 mm – 15 mm); up to 32 dot high font with single line of text
- Throw Distance – up to 1.2″ (30 mm) distance from printhead to substrate
- Display – 1280 x 800, 10.1″ LCD touchscreen
- Message Storage – 8GB
- Software Features – Bar codes, graphics, counter, lot counter, shift code, time and date, expiration date
- Operating Features – One button print start/stop, contrail print delay, reverse print, invert print, bold print, auto-start self-clean
- CleanJet™ – Quick and easy one button start/stop process for automatic self-cleaning operation
- Communication Inputs – Photocell/tigger, encoder, reverse print, BCD select, RS232, reset counter
- Communication Outputs – Alarm light (3-color), print ready, warning
- Ports – Encoder, photocell, serial and alarm beacon, I/O, network and USB connections
- Printhead – Compact and durable stainless steel design, omni-directional print capability
- Printhead Dimensions – 9.25″ (23.5 cm) long, 1.5″ (3.8 cm) in diameter
- Printhead Cable – Vinyl-covered armored conduit; 9.8′ (3 m) umbilical length standard; 13.1′ (4 m) optional
- Cabinet Construction – Stainless steel cabinet
- Electrical Dimensions – 90 – 240 VAC, 50/60 Hz
- Operating Environment – 41ºF – 113ºF (5ºC – 45ºC)
- Humidity Range – 30 – 95% relative humidity, non-condensing
- Weight – 53 lbs. (24 kg)
- Inks – Comprehensive range of inks for a variety of applications and industry requirements including MEK, Acetone and Ethanol-base; colors and soft pigment formulations available no chips or RFID tags to deal with
- Warranty – Two year warranty from the date of shipment
Optional Accessories
OPTIONAL ACCESSORIES
- Print Trigger – Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
- Encoder – For operation with variable speed conveyors
- Low Ink Light – Alerts users of low ink situations
- Mounting Brackets – Fully adjustable printhead floor stand eliminates vibration from conveyor
- Stands – Stainless cart with two shelves to hold CIJ cabinet and supplies, includes casters
- Printhead Pressurization Kit – Requires plant air
- Four-Port USB Hub – Provides 3 additional USB ports
- Alarm Beacon – Optional warning light with bracket
