ERX-15
Automatic Case Erector
- Automatically erect and seal the bottoms of cases for packing
- Up to 15 cases per minute
- Input hopper holds up to 200 cases
- Quick changeover for different size boxes – no tools
INCREASE YOUR PRODUCTION
The ERX-15 Case Erector from Eastey is designed to automatically erect and seal the bottom of your cases at production rates up to 15 cases per minute. The ERX 15 is designed to keep production and maintenance efforts at a minimum while providing fast, efficient case erecting, making the ERX-15 an ideal alternative to manual case forming.
OPERATION MADE EASY
The ERX-15 Case Erector enables a single operator to form, seal, and pack corrugate cases. Operation is simple: load up to 200 cases in the case magazine hopper and set your operation to run or jog mode. Separators release the leading blank case where a series of eight vacuum suction cups hold the case in a properly formed square position. After a set of stationary flap folding bars fold both minor and major bottom flaps, the case is then transitioned and the bottom is sealed with Eastey’s proven EX tape head.
WIDE STANDARD CASE RANGE
The versatile design of the ERX-15 allows operators the flexibility of making adjustments on the fly without tools and easy-to-use hand tighten knobs and cranks. Need to switch case sizes? No problem, case changeover is completed in minutes for a wide range of cases as large as 19.5” in length, 19.5” in height, and 15.5” in width.
INDUSTRIAL STRENGTH OPERATION
Dual 1/4 HP side drive motors, eight precise double vacuum powered suction cups, and aggressive industrial strength drive belts make ERX-15 a workhorse that will stand up to your toughest challenges. Each case erector is made from steel with a powder coated exterior to protect the ERX-15 from abusive industrial conditions and ensure years of use.
INCREASE YOUR ROI
Use of Eastey’s ERX-15 case erector can be learned in minutes, avoiding costly breaks in production and downtime. Better yet, ERX-15 will eliminate slow production rates associated with manual case forming and taping, and repurpose your labor force where they can be utilized more effectively.

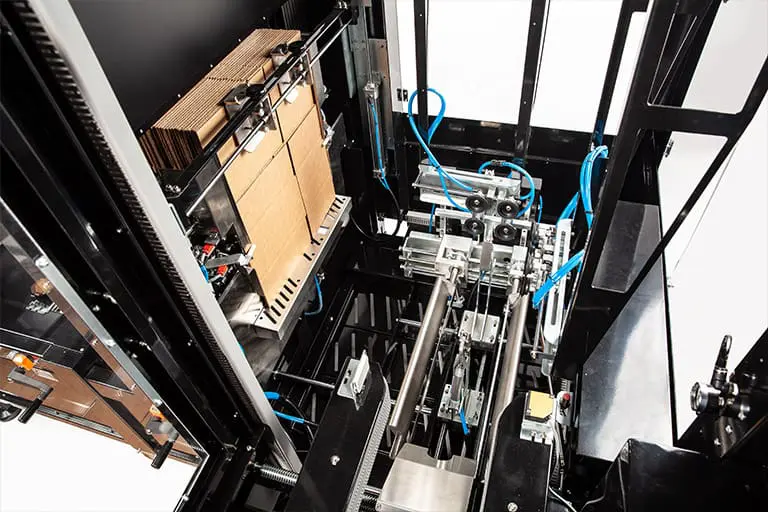

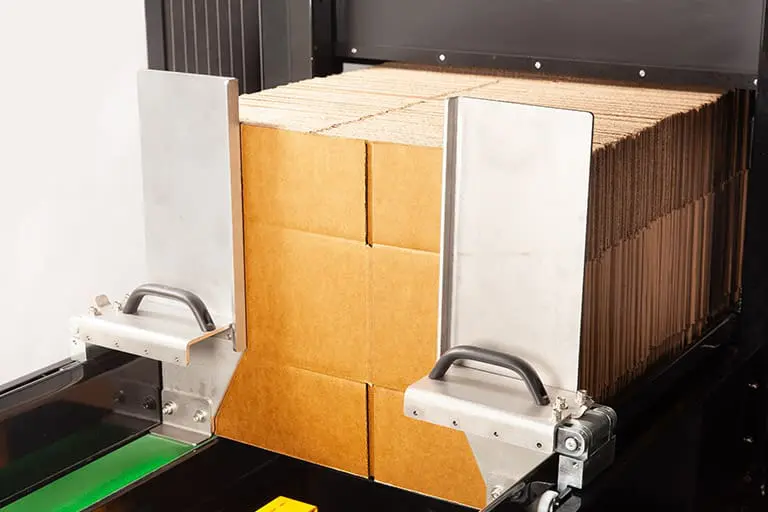

Large capacity blank magazine hopper holds up to 200 RSC cases. Replenish cases while machine is in operation.
The case drop down area releases only the leading case in preparation to transition from flat to open.
A series of eight double vacuum suction cups open the leading panels of the RSC to a precise square position and hold the case securely.
A set of flap folding bars fold the bottom minor flaps.
The bottom major flaps are folded to lock the case in the square or rectangle position.

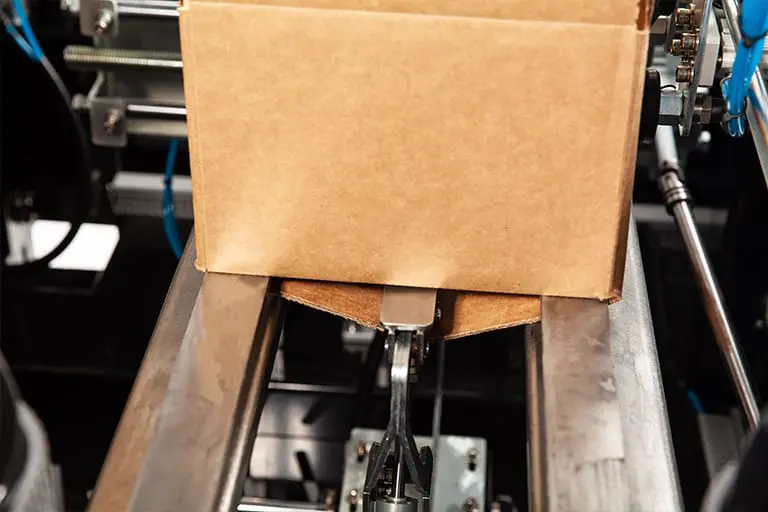

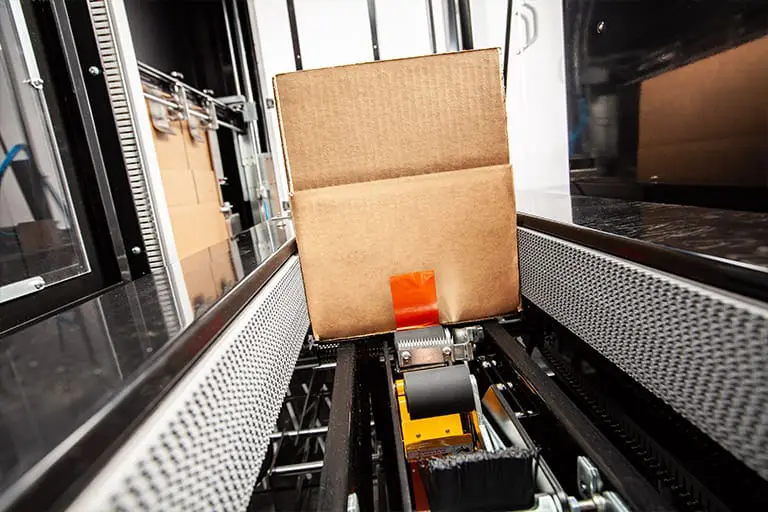

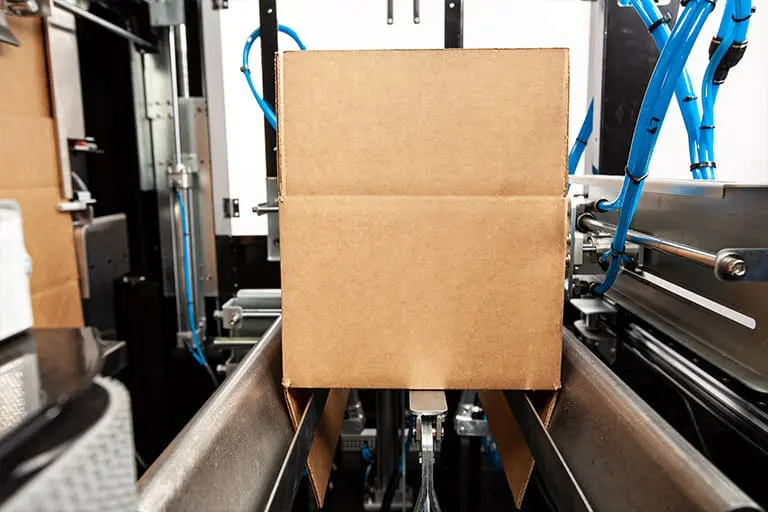

A pusher bar guides the case toward industrial strength side belts and the proven reliable EX tape head ensures a quality center seal.

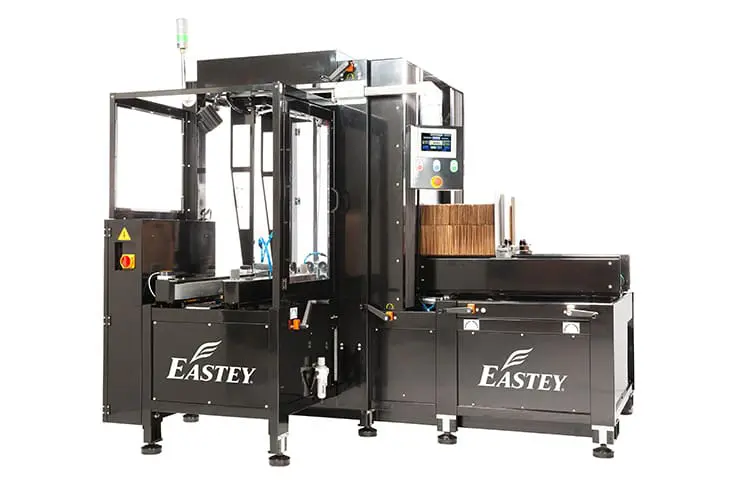

Left Hand, Left Open system shown.
Case Erector Samples
Benefits
BENEFITS OF THE JETSTREAM
- Up to 5 lines of print
- Line speeds up to 1000 ft/min
- Simple to use 10.1″ color touchscreen interface
- Automatic start-up and shut-down maximizes uptime
- Simple maintenance with quick disconnect replacement components
System
SYSTEM SPECIFICATIONS
- Print Technology – Continuous Ink Jet
- Nozzle Size – µm nozzle standard
- Print Speed – Up to 1,000 feet/minute (305 m/min) 5 x 5 single line
- Max Print Lines – 5 lines at 5 x 5 font, 4 lines at 7 x 5 font
- Font Matrix Configurations – 5 x 5, 7 x 5, 9 x 7, 12 x 12, 16 x 16, 24 x 24, 32 x 32
- Character Height – 0.07″ – 0.59″ (1.8 mm – 15 mm); up to 32 dot high font with single line of text
- Throw Distance – up to 1.2″ (30 mm) distance from printhead to substrate
- Display – 1280 x 800, 10.1″ LCD touchscreen
- Message Storage – 8GB
- Software Features – Bar codes, graphics, counter, lot counter, shift code, time and date, expiration date
- Operating Features – One button print start/stop, contrail print delay, reverse print, invert print, bold print, auto-start self-clean
- CleanJet™ – Quick and easy one button start/stop process for automatic self-cleaning operation
- Communication Inputs – Photocell/tigger, encoder, reverse print, BCD select, RS232, reset counter
- Communication Outputs – Alarm light (3-color), print ready, warning
- Ports – Encoder, photocell, serial and alarm beacon, I/O, network and USB connections
- Printhead – Compact and durable stainless steel design, omni-directional print capability
- Printhead Dimensions – 9.25″ (23.5 cm) long, 1.5″ (3.8 cm) in diameter
- Printhead Cable – Vinyl-covered armored conduit; 9.8′ (3 m) umbilical length standard; 13.1′ (4 m) optional
- Cabinet Construction – Stainless steel cabinet
- Electrical Dimensions – 90 – 240 VAC, 50/60 Hz
- Operating Environment – 41ºF – 113ºF (5ºC – 45ºC)
- Humidity Range – 30 – 95% relative humidity, non-condensing
- Weight – 53 lbs. (24 kg)
- Inks – Comprehensive range of inks for a variety of applications and industry requirements including MEK, Acetone and Ethanol-base; colors and soft pigment formulations available no chips or RFID tags to deal with
- Warranty – Two year warranty from the date of shipment
Optional Accessories
OPTIONAL ACCESSORIES
- Print Trigger – Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
- Encoder – For operation with variable speed conveyors
- Low Ink Light – Alerts users of low ink situations
- Mounting Brackets – Fully adjustable printhead floor stand eliminates vibration from conveyor
- Stands – Stainless cart with two shelves to hold CIJ cabinet and supplies, includes casters
- Printhead Pressurization Kit – Requires plant air
- Four-Port USB Hub – Provides 3 additional USB ports
- Alarm Beacon – Optional warning light with bracket
