BB-2/SS
Stainless Steel Bottom Belt Case Taper
- Stainless version of BB-2
- Built by Eastey – Big Lake, MN
- Ideal for washdown applications
- 12 gauge stainless steel
- Washdown rated motor
- IP65 rated switch
- Available with or without stainless tape heads
- Stainless casters and pack tables
EASTEY DELIVERS WHAT YOU NEED. . .TODAY
Eastey’s BB-2/SS case taper is a cost-effective top and bottom case taper designed for large run case sealing. BB-2/SS utilizes pressure-sensitive tape and features self-centering side rails, a rugged bottom belt drive, and heavy-duty mast that easily adjusts to handle a variety of case sizes. BB-2/SS is ideal for washdown conditions.
INNOVATIVE TECHNOLOGY, PROVEN RELIABILITY
BB-2/SS offers the durability, versatility and reliability
that you have come to rely on from Eastey. The system’s
unique and simple design has proven to be one of the
most reliable case tapers on the market today, keeping
production and maintenance efforts to a minimum and
providing fast and efficient alternatives to hand taping.
TRUE VERSATILITY FOR YOUR NEEDS
BB-2/SS offers fast and easy case changes with
adjustable side rails and flexibility ranging from 4.5˝ to
infinite box length. BB-2/SS is also able to seal cases
ranging from 4.5˝ to 22.5˝ in width, as well as 4˝ to 25.5˝
in depth. Adjustments can be made on the fly with easy
hand tighten knobs on a single mast design. A single
drive motor and aggressive drive belts will move your
boxes and stand up to your toughest challenges.
BB-2/SS is also perfect for integration with ink jet
printers where coding is required on boxes.
CASE TAPING AS EASY AS 1-2-3
BB-2/SS top and bottom tape heads are interchangeable and tip back for easy threading. No air is required to run the BB-2/SS taping system so it can be placed anywhere in the factory. A safe single mast allows clear access to all components and adjusts for a variety of case sizes. The use of Eastey’s BB-2/SS case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.
Top and bottom tape heads are interchangeable and tip back for easy threading.

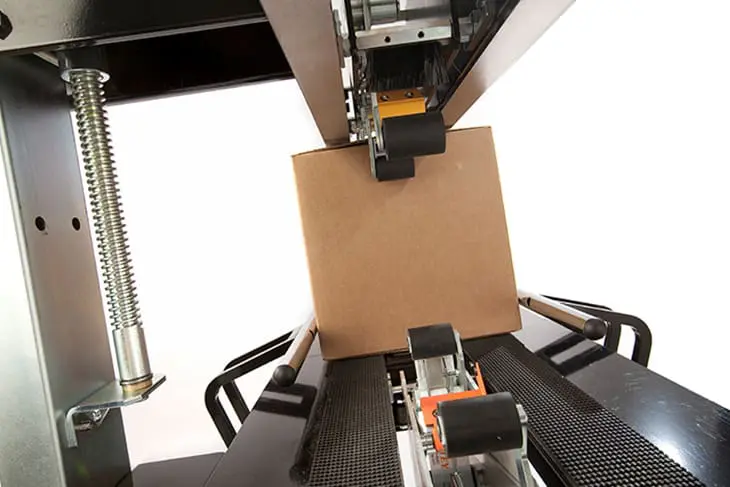

Industrial strength drive belts move boxes consistently through the taper.
Adjustable side rails and tape head offer fast and easy case changes.

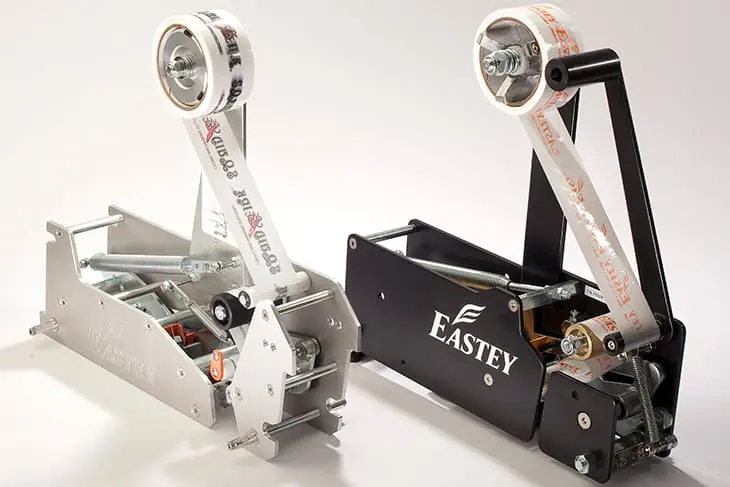

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.
Features
- Plug-in and go operation
- 12 gauge stainless steel
- Interchangeable top and bottom tape cartridges
- Adjustable side rails
- Industrial strength drive belts
- Easy hand-tighten adjustments
- Safe single mast design
- No air required
- Low maintenance
- Simple integration with ink jet printers
- Washdown motor and electronics
- 1 pack table
Taper Specs
- Sealer Type – Stainless steel bottom belt, top and bottom case sealer
- Machinery Makeup – Industrial strength 12 gauge stainless steel
- Belt Speed – 60 feet/per minute
- Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
- Adjustable Side Rails – Palm grip knobs offer quick and simple adjustments
- Height Adjustment – Standard adjustable legs for 22.25” to 34.25 conveyor heights
- Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape
- Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
- Air Requirements – None
- Electrical Requirements – 110 VAC, 60Hz, 10A
Box Specs
- Minimum Box Size – 4.5″ (Length) 4.5″ (Width) 4″ (Depth)
- Maximum Box Size – infinite (Length) 22.5″ (Width) 25.5″ (Depth)
Optional Accessories
- 3” Tape Head – Accepts 3” wide tape rolls
- Casters – Rugged wheels for transportation within plant
- Front and Rear Packing Table – Solid tables bolt before and/or after taping system to allow for case packing
- Top Squeezers – Allows for operation with variable speed conveyors
