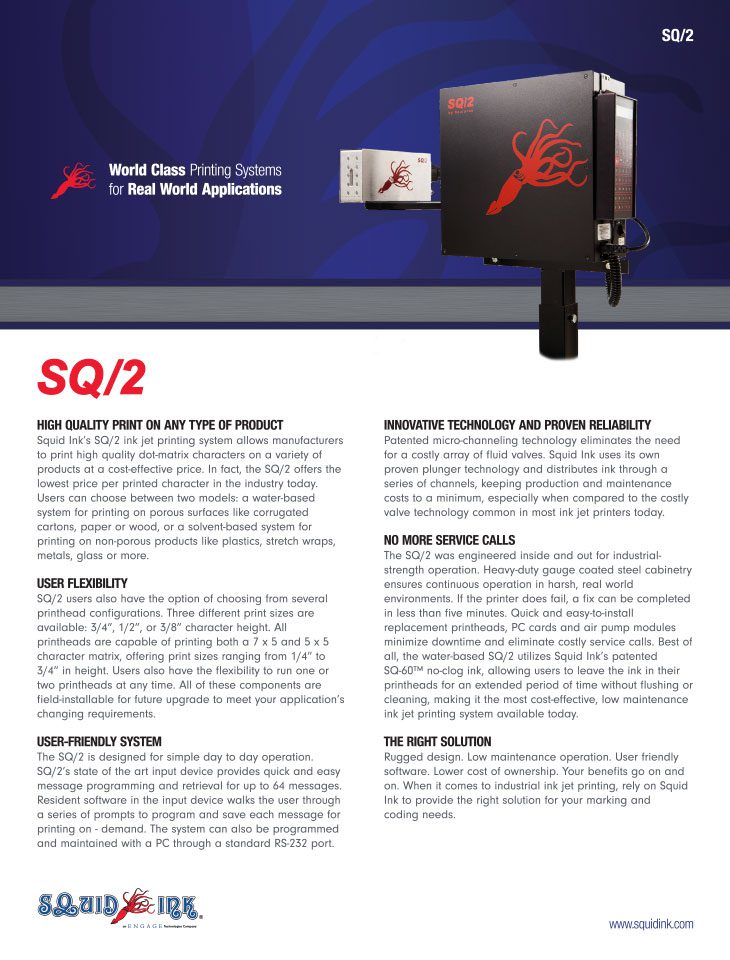

SQ/2
Large Character Printing System
- Run one or two print heads from the same controller
- Easy-to-use software walks you through a series of prompts to program and save messages for printing
- Simple to operate, virtually maintenance-free and field upgradeable with modular components and options
- Two models: water-based for porous surfaces or solvent-based for non-porous surfaces
The SQ/2 large character ink jet system prints high-quality dot-matrix characters on a variety of products at a cost-effective price. The SQ/2 offers the lowest price per printed character in the industry today. Users can choose between two models: a water-based model for printing on porous surfaces like corrugated cartons or solvent-based system for printing on non-porous product like plastics, stretch wraps, metals and more.
User Flexibility
SQ/2 users also have the option of choosing from several printhead configurations. Three different print sizes are available: 3/4″, 1/2″ or 3/8″ character height. All printheads are capable of printing both 7 x 5 and 5 x 5 character matrix, offering print sizes ranging from 1/4″ to 3/4″ in height. Users also have the flexibility to run one or two printheads at any time. All of these components are field-installable for future upgrade to meet your applications changing requirements.
No More Service Calls
The SQ/2 was engineered inside and out for industrial strength operation. Heavy-duty gauge coated steel cabinetry ensures continuous operation in harsh, real world environments. If the printer does fail, a fix can be completed in less than five minutes. Quick and easy-to-install replacement printheads, PC cards and air pump modules minimize downtime and eliminate costly service calls. Best of all, the water-based SQ/2 utilizes Squid Ink’s patented SQ-60™ no-clog ink, allowing flushing or cleaning, making it the most cost-effective, low-maintenance ink jet printing system available today.

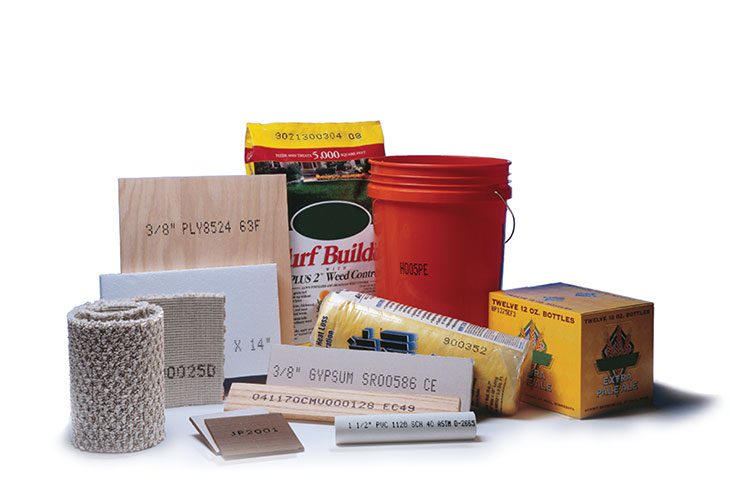

The SQ/2 utilizes water-based or solvent-based inks for printing on a wide range or porous and non-porous surfaces.

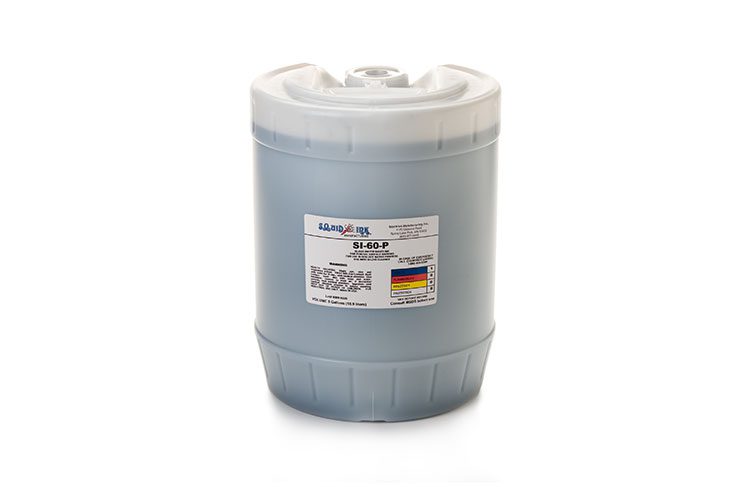

Squid Ink's patented SQ-60™ no-clog ink allows users to leave ink in their printhead without having to flush their system.

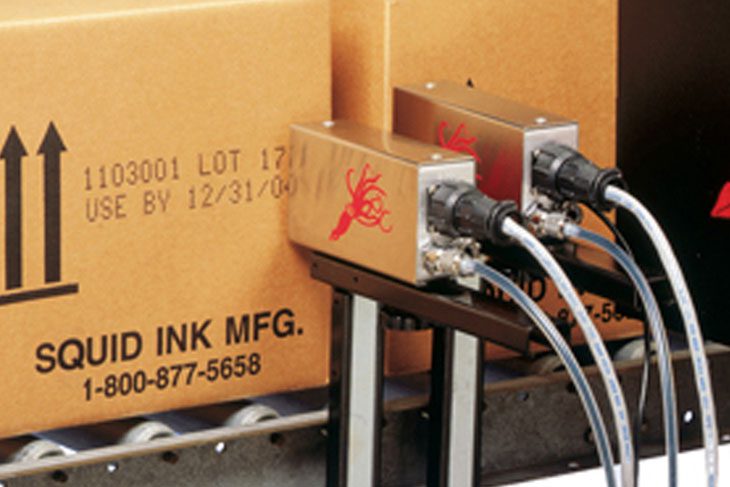

Run one or two printheads; select from three different printhead sizes; all components are field-installable.

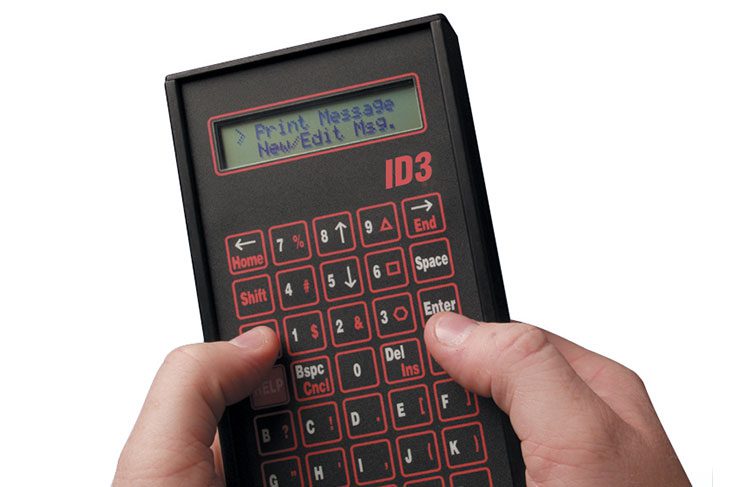

An industrial-strength input device provides quick and easy message programming.
Benefits
BENEFITS OF THE SQ/2
- Run one or two print heads from the same controller
- Easy-to-use software walks you through a series of prompts to program and save messages for printing
- Simple to operate, virtually maintenance-free and field upgradeable with modular components and options
- Two models: water-based for porous surfaces or solvent-based for non-porous surfaces
- Industrial strength hand-held input device for easy message input
- Ability to run two print heads, allows printing on one or two sides of product
System
SYSTEM SPECIFICATIONS
- Printer Type – Large character ink jet printer
- Character Height – .75″ (1.9 cm) in 7 x 5 matrix; .5″ (1.3 cm) in 5×5 matrix, or .5″ (1.3 cm) in 7 x 5 matrix; .375″ (1 cm) in 5 x 5 matrix, or .375″ (1 cm) in 7 x 5 matrix; .25″ (.6 cm) in 5 x 5 matrix
- Character Set – 61 character ASCII set
- Print Speed – 20 feet/minute (6.1 m/minute) to 200 feet/minute (61 m/minute) line speed; optional extended character width firmware allows for print speeds slower than 20 feet/minute
- Message Length – 60 characters per message; 64 memory locations
- Communication – RS-232C, 9600 baud, 8 data bits, 1 start, 1 stop, Asynch
- Software Features – 24-hour clock, Julian date, counter, lot counter
- Operating Features – Dot size, print delay, character width, photocell on/off, invert print, reverse print, purge routine
- Controller Weight – 10.5 lbs. (4.8kg)
- Printhead Dimensions – 3″ (7.6 cm) H x 1.6″ (4.1 cm) W x 7″ (17.8 cm) L; dimensions are for the printhead only – an additional 3″ (7.6 cm) is needed for the ink line and cabling which extends from the back of the printhead
- Product Sensor – Diffuse bean photocell (24v) or hardware
- Electrical Requirements – 100 – 240 VAC, 50-60 HZ, 1.0 amp
- Cabinet Construction – Industrial gauge coated steel
- Substrate Capabilities – Porous or non-porous surfaces
- Air Requirements – No external air needed
- Ink Capabilities – Porous: Squid Ink SQ-60™ no-clog ink
- Ink Volume – .5 (1.89 liters) gallon bottle standard; available upgrade (water-base ink only) to 5.0 gallon pail (18.93 liters)
Optional Accessories
OPTIONAL ACCESSORIES
- Spare Parts Kit – Includes spare printhead, card cage and PC board pack, air pump module, data cable and master cap
- Starter Kit – Includes ink, cleaner for flushing the system, spray bottle for cleaner, hand cleaner and lint-free wipes for the printhead
- 5-Gallon Pail Upgrade – Upgrades ink supply to 5.0 gallons (water-base ink only)
- PC Software – Communications software for PC integration
- Repeat Print Firmware – Allows continuous printing of messages
- Extended Character Firmware – Allows for print speeds slower than 20 feet/minute
- Rollaway Stand – Provides mount for the SQ/2 controller, designed with caster wheels for transportation within plant
