SQ/2 Scorpion

SQ/2 Scorpion

Large Character Printing System

  • Upgraded features include increased message locations, expiration date, shift organizer and encoder input
  • Built-in air gauge to view regulated air pressure with the system and fine-tune print quality
  • Proven plunger technology ensures uptime and keeps maintenance costs to a minimum

The SQ/2 Scorpion industrial large character ink jet printer includes upgraded software delivering more features. SQ/2 Scropion users have the option of choosing from several print head configurations. Five different print head sizes are available, offering 12 print sizes ranging in height from 3/8″ up to 1 3/4″. The 1600 Series print heads offer split-line capability and the option of printing full-size characters or half-size characters with the same print head.

True Versatility for Your Needs

SQ/2 Scorpion users have the option of choosing from several printhead configurations. Five different print sizes are available: 3/8″, 1/2″, 3/4″, 1″ or 1 3/4″ character height. All printheads are capable of printing at 100% or 70% character height, offering 12 print sizes ranging from 1/4″ to 1 3/4″ in height. The 1″ 1 3/4″ (1600 Series) printheads even offer split-line capability and the option of printing full-size characters of half-size characters with the same printhead.

More Brain. More Brawn.

The SQ/2 Scorpion is upgraded with software features that ink jet users need most: increased memory locations for up to 128 messages, the ability to automatically print a manufacturing date and an expiration date, as well as a shift organizer to automatically separate and code different work shifts within your packaging operation. The SQ/2 Scorpion also comes standard with a shaft encoder input for packages using a variable speed conveyor. On the hardware side, the SQ/2 Scorpion features a built-in central air gauge to view regulated air pressure within the system and fine-tune your print quality.

The SQ/2 Scorpion utilizes water-based or solvent-based inks for printing on a wide range or porous and non-porous surfaces.

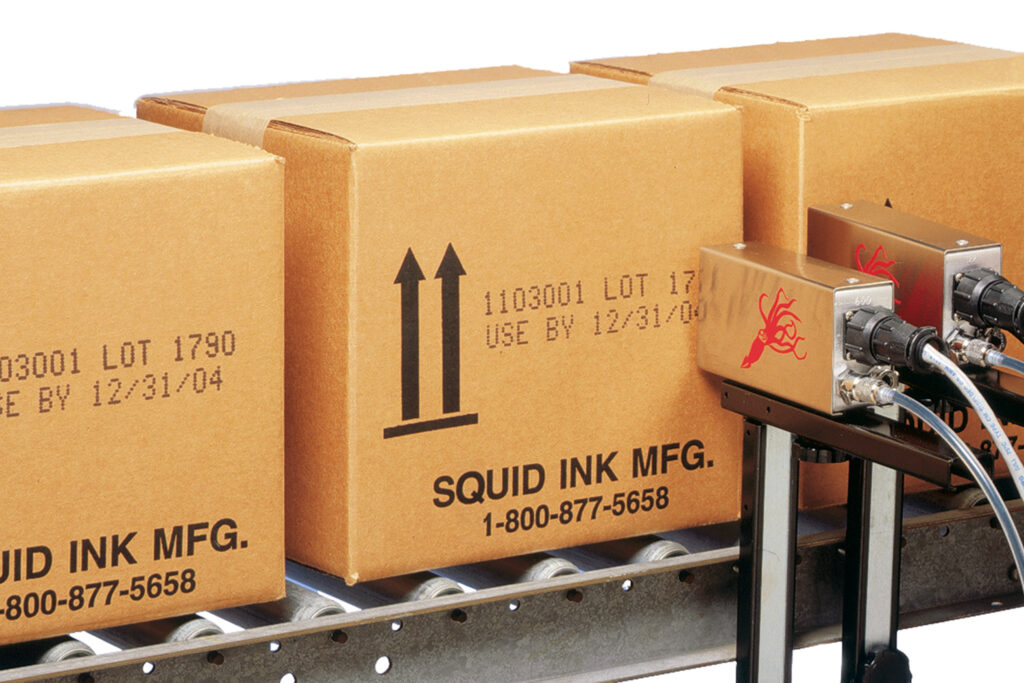

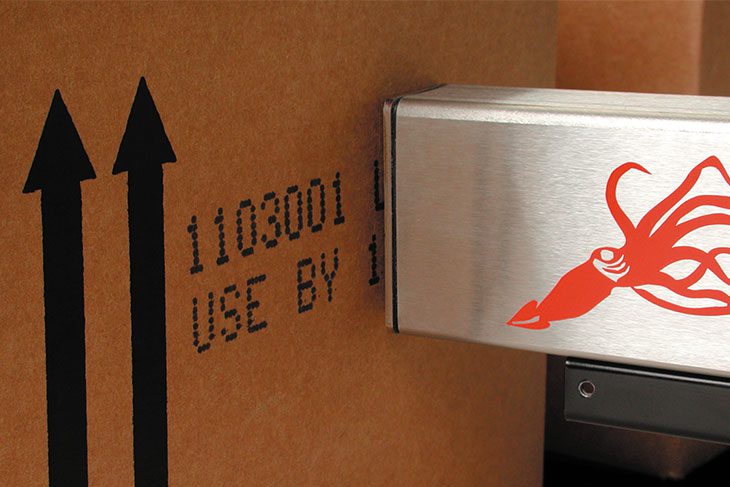

Run one or two SQ/2 Scorpion printheads for versatile single line printing.

Or run one Series 1600 printhead for full character size and split-line capability.

Squid Ink's patented SQ-60 no-clog ink allows users to leave ink in their printhead without having to flush their system.

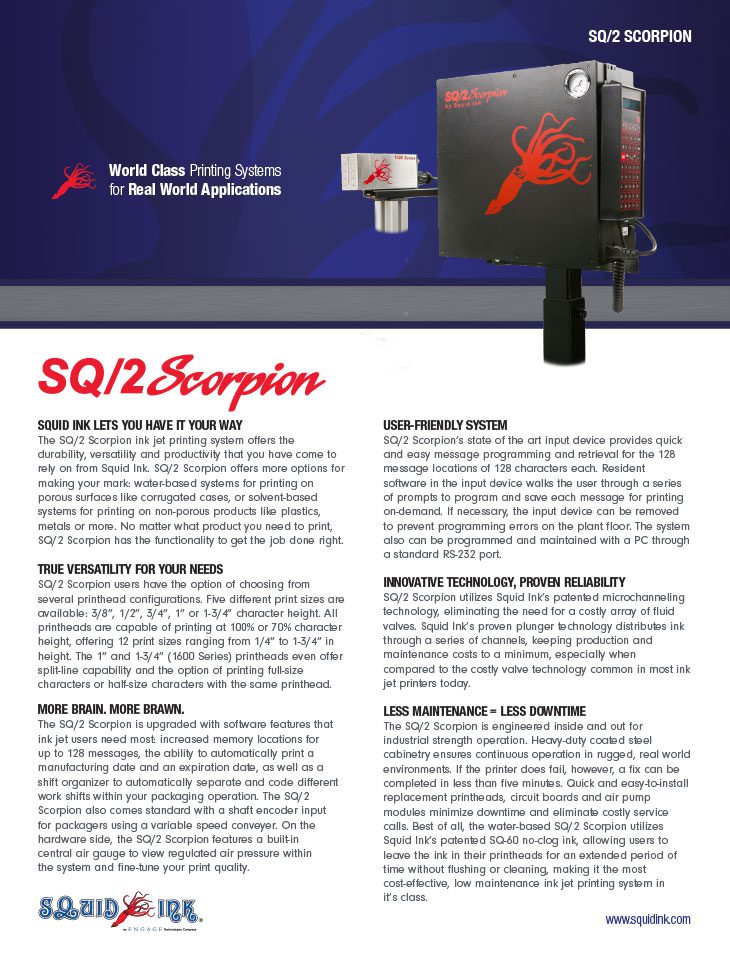

SQ/2 Scorpion Brochure
Benefits

BENEFITS OF THE SQ/2 SCORPION

  • Upgraded features include increased message locations, expiration date, shift organizer and encoder
  • Built-in air gauge to view regulated air pressure within the system and fine-tune print quality
  • Proven plunger technology ensures uptime and keeps maintenance costs to a minimum
  • Two models: water-based for porous surfaces or solvent-based for non-porous surfaces
  • Ability to run two SQ/2 Series print heads or one 1600 Series print head
  • Component modularity eliminates the need for service calls and minimizes downtime; print heads and compents can be replaced in less than 5 minutes

SYSTEM SPECIFICATIONS

  • Printer Type – Large character ink jet printing system
  • Printhead Options – Users have the option to use up to two SQ/2 printheads or one 1600 Series printhead
  • Character Heights – SQ/2 Series Printheads (7-channel dot matrix characters) .75″ (1.9 cm) in 7 x 5 matrix; .5″ (1.3 cm) in 5 x 5 matrix or .5″ (1.3 cm) in 7 x 5 matrix; .375″ (1.0 cm) in 5 x 5 matrix or .375″ (1.0 cm) in 7 x 5 matrix; .25″ (.6 cm) in 5 x 5 matrix Character Heights – 1600 Series Printheads (16-channel dot matrix characters) 1.75″ (4.5 cm) in 16 x10 matrix, with split-line capability to print two lines of the following size characters: .75″ (1.9 cm) at 7 x 5 matrix; .5″ (1.3 cm) in 5 x 5 matrix or 1.0″ (2.5 cm) in 16 x 10 matrix, with split-line capability to print lines of the follow size characters: .375″ (1.0 cm) at 7 x 5 matrix; .25″ (.6 cm) in 5 x 5 matrix
  • Character Set – 61 character ASCII set Print Speed – Up to 200 feet/minute (61 m/minute) line speed
  • Message Length – 128 character length per message; 128 memory locations
  • Communication – RS-232C, 9600 baud, 8 data bits, 1 start, 1 stop, Asynch
  • Software Features – Counter, lot counter, 24-hour clock, 8 or 12 hour programmable shift code, Julian date, 3-letter month name, 3-letter weekday name, expiration date, expiration month, expiration day, expiration year, expiration & Julian date
  • Operating Features – Dot size, print delay, character width, photocell on/off/repeat, invert print, reverse print, purge routine
  • Shaft Encoder Output – Resident software allows communication with shaft encoder for use with variable speed conveyors
  • Controller Dimensions – 12″ (31 cm) H x 12″ (31 cm) W x 5.25″ (13 cm) D
  • Controller Weight – 10.5 lbs. (4.8 kg)
  • Printhead Dimensions – SQ/2 Series Printheads: 3″ (7.6 cm) H x 1.6″ (4.1 cm) W x 7″ (17.8 cm) L 1600 Series Printheads: 2.5″ (6.4 cm) H x 1.5″ (3.8 cm) W x 7″ (17.8 cm) L Dimensions are for the printhead only – an additional 3″ (7.6 cm) is needed for the ink line and printhead cabling which extends from the back of the printhead
  • Product Sensor – Diffuse beam photocell (24v) or hardware sinking signal
  • Communication Interface – Two RS-232 ports for connection to input device, host PC and PLC for input from scale, scanner or external alarm
  • Air Pump – Internal air pump module provides necessary air pressure; external air not recommended
  • Electrical Requirements – 100 – 140 VAC, 50-60 Hz, 1.0 amp
  • Cabinet Construction – Industrial gauge coated steel
  • Operating Environment – Water-based Ink: 32ºF (0ºC) to 120ºF (50ºC) Solvent-Based Ink: 0ºF (-18ºC) to 120ºF (50ºC)
  • Substrate Capabilities – Porous or Non-Porous surface
  • Ink Capabilities – Porous: Squid Ink SQ-60 no-clog ink Non-Porous: Several Squid Ink solvent-based fluids to meet your application needs for adhesion and dry time
  • Ink Volume – .5 gallon (1.9 liters) bottle standard: available upgrade (water-base ink only) to 5.0 gallon (18.9 liters) pail

OPTIONAL ACCESSORIES

  • Spare Parts Kit – Includes spare printhead, card cage and PC board pack, air pump module, data cable and master cap
  • Starter Kit – Includes ink, cleaner for flushing the system, spray bottle for cleaner, hand cleaner and lint-free wipes for the printhead
