CoPilot 500

CoPilot - 500

Hi-Resolution Printer

  • Run up to two 2.8″ print heads from a single controller
  • Print up to 5.6″ of hi-resolution characters, razor-sharp text, scannable bar codes and great looking logos at 180 dpi per print head
  • CoPilot’s 4.3″ full color touchscreen provides access to the system’s internal messages and print functions.

More Options, Better Print

Squid Ink’s CoPilot 500 printing system is designed to print superior quality hi-resolution with up to 2.8″ of print height per printhead and the ability to run up to 2 printheads from one controller. The CoPilot 500 offers versatile, yet cost effective solution for your coding and marking applications.

Application Versatility

The system is capable of running oil-based or solvent-based inks up to 5.6″ (2.8″ from a single head) of hi-resolution characters, razor-sharp text, scannable bar codes and great looking logos at 180 dpi. For non-porous applications, users have the option of utilizing Squid Ink’s solvent-based ink to print on a variety of non-porous products like coated cartons, polystyrene and more. Squid Ink’s PZ-1000 ink for porous substrates offers ultra-low maintenance, eliminating the need for auto-priming functions and offering better ink utilization than competitive systems.

Increased Performance

The CoPilot 500 controller features increased processing power to print the message you want, when you want to print them. Faster GUI response time and near immediate message rendering time allows the CoPilot 500 to keep up with demands of your fast-paced manufacting environment.

Engineered For Maximum Uptime

The CoPilot 500 is designed to meet the harsh demands of your application. The printer features a durable touchscreen, industrial strength print head construction and simple ink delivery system for industrial applications. You can be confident that CoPilot 500’s rugged design will withstand the most abusive industrial environments while providing superior quality print. The CoPilot 500 also features a large 500ml cartridge. The generous ink volume allows users to keep their line running, reducing downtime and maximizing ROI.

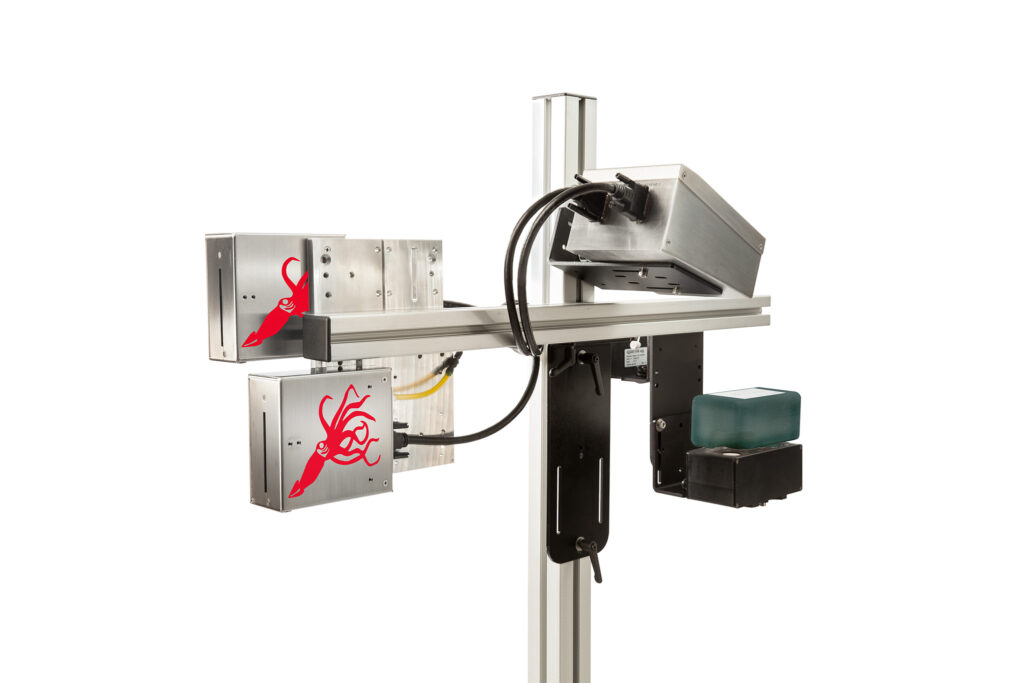

Run up to two printheads from a single controller, for up to 5.6" of print per system.

The CoPilot 500 utilizes oil-based or solvent-based inks for printing on a wide range of porous or non-porous substrates.

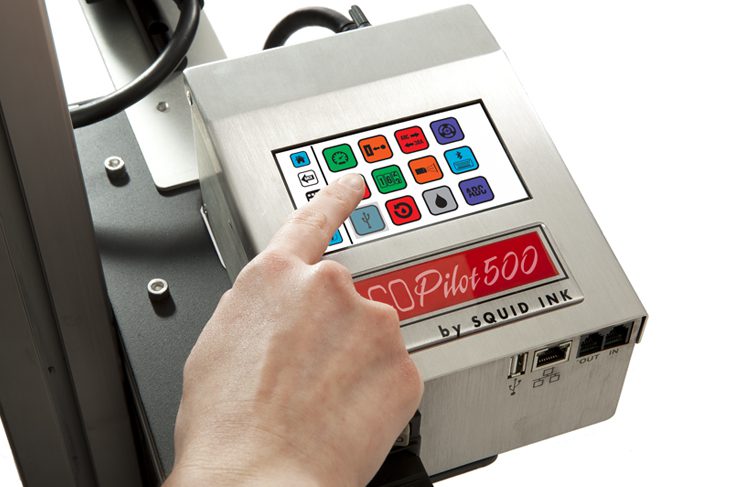

A 4.3" full color touchscreen provides access to the systems internal messages and print functions.

Manage messages wirelessly using the optional 10.1" full color touchscreen with Orion Software.

Squid Ink is a GS1 US Solution Partner, dedicated to helping businesses implement GS1 standards.

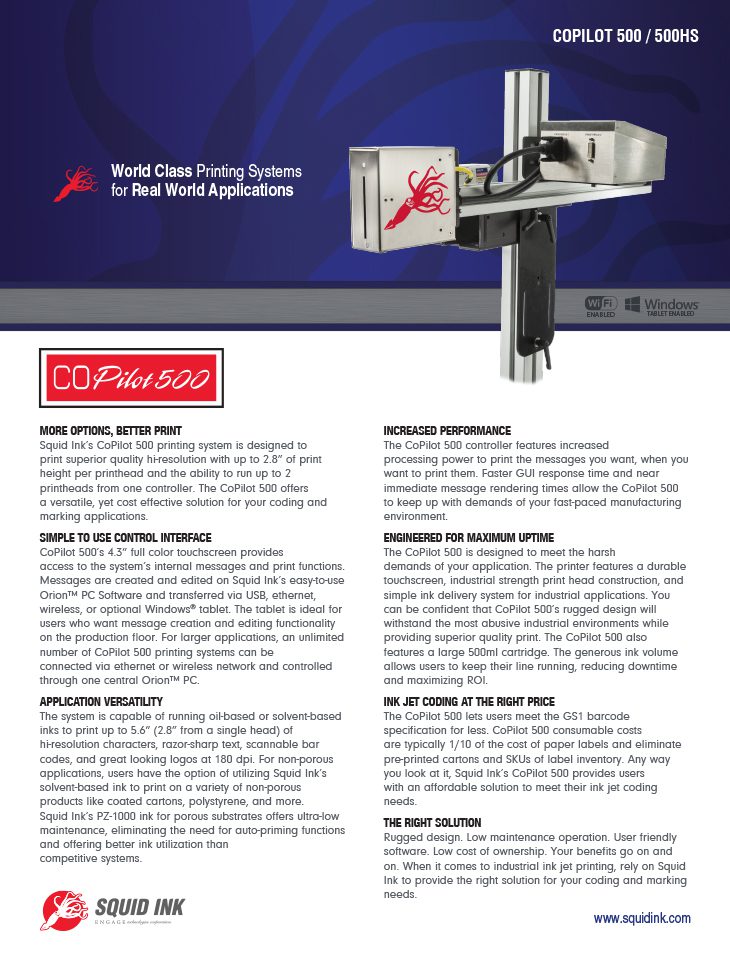

CoPilot 500 Brochure
Benefits

BENEFITS OF THE COPILOT 500

  • Print up to two 2.8″ print heads from a single controller
  • Print up to 5.6″ of hi-resolution characters, razor-sharp text, scannable bar codes and great looking logos at 185 dpi per print head
  • CoPilot’s 4.3″ full color touchscreen provides access to the system’s internal messages and print functions
  • Compatible with Squid Ink’s easy-to-use Orion™ message creation PC software

SYSTEM SPECIFICATIONS

  • Print Technology – Piezo impulse printhead technology
  • Maximum Print Height – 2.8″ (7.1 cm) per printhead, 5.6″ (14.2 cm) total
  • Vertical Print Resolution – 185 dpi capable of printing razor-sharp graphics, small characters text and scannable bar codes
  • Horizontal Print Resolution – 205 dpi
  • Print Speed – CoPilot 500 (oil-based) 205 ft/min; CoPilot 500HS (oil-based) 300 ft/min; CoPilot 500 (solvent-based) 150 ft/min
  • Time & Date – Internal real-time clock with battery back-up
  • Product Sensor – External diffuse beam photocell standard
  • Communication Interface – One USB host and one Ethernet input
  • Touchscreen – 4.3″ (10.9 cm) full color touchscreen display
  • Ink Cartridge Volume – 500ml cartridge or bag
  • Low Ink Indicator – Status alert on touchscreen; LED light beacon optional
  • Substrate Capabilities – Porous or Non-porous surfaces
  • Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 216VA maximum
  • Operating Environment – 34ºF – 104ºF (1º – 40ºC) oil-based; 62ºF – 100ºF (17º – 37ºC) solvent-based
  • Agency Certifications – CE, TUV, FCC, UL, CSA

SOFTWARE SPECIFICATIONS

  • Time & Date – Full time and date functionality including expiration date and Julian Dates
  • Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
  • Shift Codes – Four programmable shift codes with automatic rollover
  • Bar Codes – All standard bar codes including 2D
  • Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
  • Logos – Most image files supported with Orion Graphical Interface Software
  • Printing Features – Reverse, invert, rotate, repeat, print on/off button
  • Message Length – Up to 120″ (3.05 m)
  • Number of Messages – 4GB storage space will store approximately 1000+ messages
  • Ink Usage – Shown in Orion™ PC Software
  • User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
  • Bluetooth Connectivity – For connectivity with Bluetooth keyboards
  • Wireless Connectivity – For wireless connection between PC or tablet and printer controller
  • Database Capability – Ethernet communication protocol for external communication
  • Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian

OPTIONAL ACCESSORIES

  • Encoder – For operation with variable speed conveyors
  • Bar Code Laser Scanner – Allows scan and print message retrieval
  • External Light Beacon – Indicates low ink levels
  • Wireless USB Device and Router – For wireless connectivity
  • Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
  • Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
  • Floorstand – Includes mounting brackets and legs with leveling feet; 59″ (1.5m) total height
  • Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
