CoPilot Max LT

Hi-Resolution Printer

Unprecedented 10-12mm throw distance
Run up to 440 fpm at 150 horizontal dpi or up to 220 fpm at 300 horizontal dpi
2.8″ of print height per printhead and the ability to run up to 2 printheads from one controller

Bigger, Better, Faster

Squid Ink’s CoPilot® Max LT printing system can easily handle high speed applications with the ability to run up to 440 fpm at 150 horizontal dpi or up to 220 fpm at 300 horizontal dpi. With up to 2.8″ of print height per printhead and the ability to run up to 2 printheads from on controller, the CoPilot Max LT offers a versatile, yet cost effective solution for your coding and marking applications.

Make Your Mark

CoPilot Max LT utilizes Squid Ink’s revolutionary active ink system, allowing users the ability to tilt or rotate the printhead in any direction without making height adjeustments to the ink supply. The system prints hi-resolution characters, razor-sharp text, scannable bar codes and great looking logos at up to 360 dpi, nearly twice the resolution of competitive printers in its class.

User-Friendly Design

The CoPilot Max LT features a 4.3″ full color touchscreen that allows users access to the system’s internal messages and print functions. Messages are created and edited on Squid Ink’s easy-to-use Orion™ PC Software and transferred via USB ethernet, wireless or optional Windows® tablet. The tablet is ideal for users who want to message creation and editing functionality on the production floor. For larger applications, an unlimited number of CoPilot Max LT printing system can be connected via ethernet or wireless network and controlled through one central Orion PC.

Seamless Integration

The CoPilot Max LT is designed to meet the harsh demands of your applications. The printer features a durable touchscreen, industrial strength printhead construction and simple active ink delivery. You can be confident that CoPilot Max LT’s rugged design will withstand the most abusive industrial environments while providing superior quality print. The CoPilot Max LT also features a large 500ml snap-in cartridge, allowing users the ability to swap ink cartridges in a matter of seconds. The generous ink volume, quick-change ink cartridge and user-friendly touchscreen design allows users to keep their ine running, reducing downtime and maximizing ROI.

Affordable Product Coding

The CoPilot Max LT lets users meet the GS1 barcode specification for less. CoPilot Max costs are typically 1/10 of the cost of paper labels and eliminate preprinted cartons and SKUs of label inventory. Any way you look at it, Squid Ink’s CoPilot Max provides users with an affordable solution to meet their ink jet coding needs.

The Right Solution

Rugged design. Low maintenance operation. User-friendly software. Low cost of ownership. Your benefits go on and on. When it comes to industrial ink jet printing, rely on Squid Ink to provide the right solution for your coding and marking needs.

CoPilot Max LT allows reliable printing with an unprecedented 10-12mm throw distance.

Squid Ink's proven inks and fluids are available in large 500ml no-mess cartridges.

The CoPilot Max LT's revolutionary active ink system allows conversion to downshooter mode in seconds.

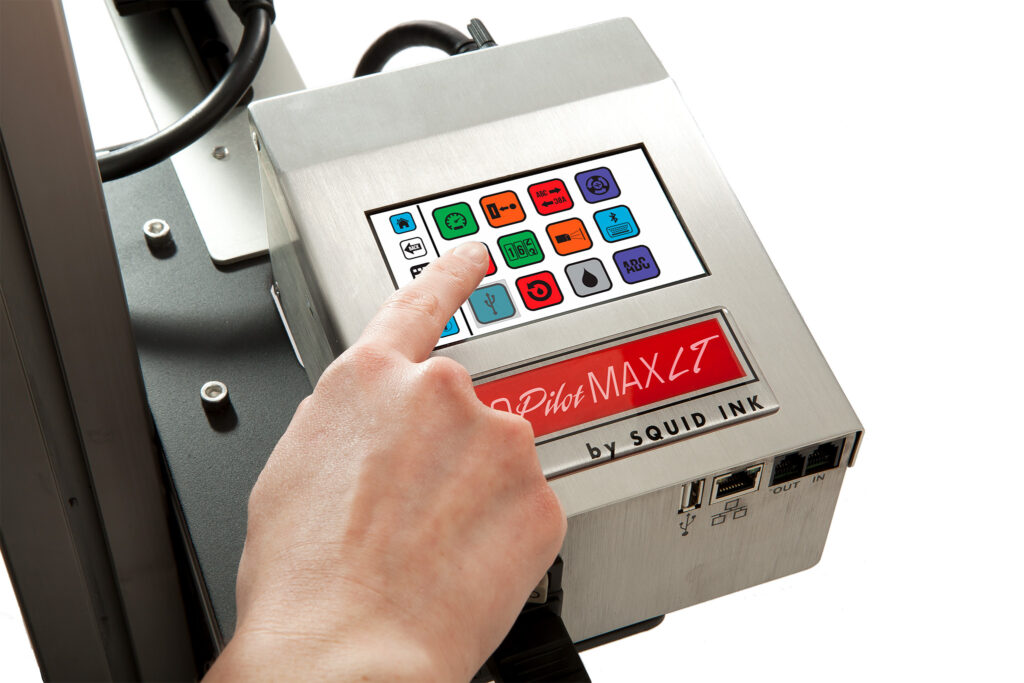

A 4.3" full color touchscreen provides access to the systems internal messages and print functions.

Squid Ink is a GS1 US Solution Partner, dedicated to helping businesses implement GS1 standards.

System

SYSTEM SPECIFICATIONS

Print Technology – Piezo impulse printhead technology
Maximum Print Height – 2.8″ (72 mm) per printhead
Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small characters text and scannable bar codes
Horizontal Print Resolution – 150 dpi or 300 dpi
Throw Distance – Up to 10-12mm (.4 – .5″) from substrate
Print Speed – Up to 440 ft/min (134 m/min) at 150 horizontal dpi; Up to 220 ft/min (67 m/min) at 300 horizontal dpi
Time & Date – Internal real-time clock with battery back-up
Product Sensor – External photocell or optional encoder
Communication Interface – One USB host and one Ethernet input
Touchscreen – 4.3″ (10.9 cm) full color touchscreen display
Ink Cartridge Volume – 500ml cartridge
Low Ink Indicator – Status alert on touchscreen; LED light beacon optional
Substrate Capabilities – Porous or Non-porous (future) surfaces
Electrical Requirements – Input Voltage: 100 – 240 VAC, 50/60 Hz, Power: 240VA maximum
Operating Environment – 34ºF – 104ºF (1º – 40ºC)
Storage Environment – 34ºF – 122ºF (1º – 50ºC)
Agency Certifications – CE, TUV, FCC, UL, CSA

Software

SOFTWARE SPECIFICATIONS

Time & Date – Full time and date functionality including expiration date and Julian Dates
Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
Shift Codes – Four programmable shift codes with automatic rollover
Bar Codes – All standard bar codes including 2D
Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
Logos – Most image files supported with Orion Graphical Interface Software
Printing Features – Reverse, invert, rotate, repeat, print on/off button
Message Length – Up to 120″ (3.05 m)
Number of Messages – 1GB storage space will store approximately 1000+ messages
Ink Usage – Shown in Orion™ PC Software
User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
Wireless Connectivity – For wireless connection between PC or tablet and printer controller
Database Capability – Ethernet communication protocol for external communication
Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian, Polish

Optional Accessories

OPTIONAL ACCESSORIES

Encoder – For operation with variable speed conveyors
Bar Code Laser Scanner – Allows scan and print message retrieval
External Light Beacon – Indicates low ink levels
Wireless USB Device and Router – For wireless connectivity
Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to Ethernet cable and stylus
Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
Floorstand – Includes mounting brackets and legs with leveling feet; 59″ (1.5m) total height
Spring Loaded Printhead Bracket – Provides consistent throw distance with inconsistent boxes or products
Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
