Bottomless Side Belt
Transfer Conveyor
- Made in the USA with 100% UL Certified components
- Stainless steel frame
- Up to 90 ft/min
- Pinch point protection
With Tilting Capabilities and Enclosed Frame

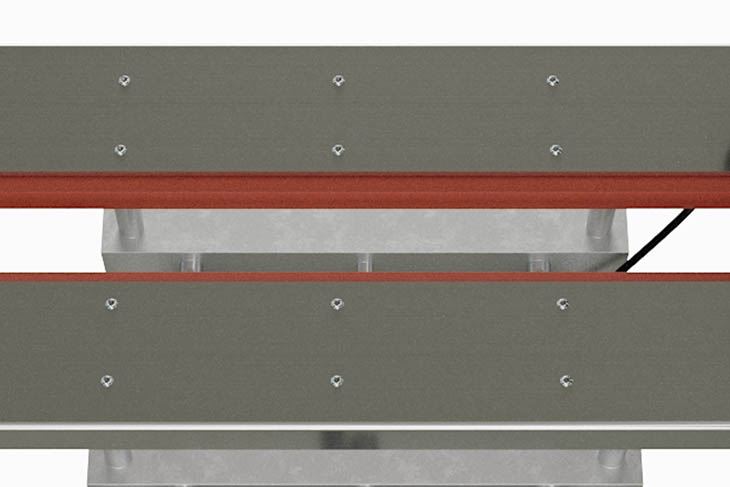

The GLOBALTEK™ Bottomless Conveyor has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. Designed for open access to the bottom side of the container for coding expiration dates, lot numbers, etc. The Gripper Belts are independently adjustable using an aluminum crank handle, accommodating containers up to 8” in diameter.
Pinch point protection
Aluminum crank handle

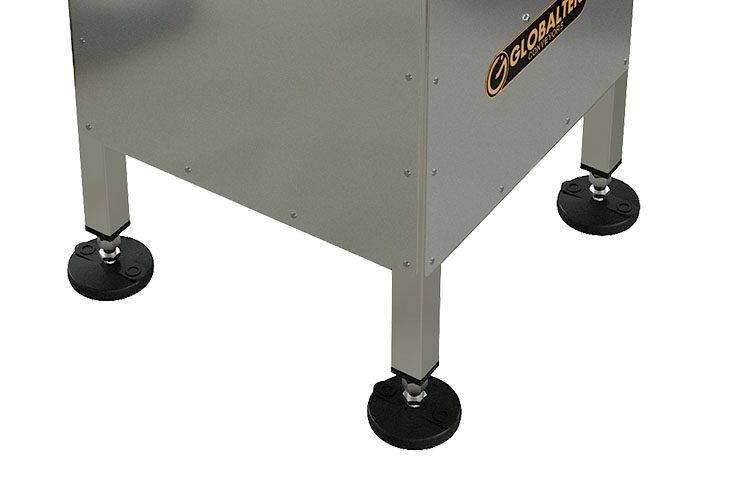

Leveling pads
Speed Control
Timing belt
Heavy-duty motors
Features
FEATURES
- Made in the USA with 100% UL Certified components
- Stainless steel frame
- Up to 90 ft/min
- Pinch point protection
- Teco® variable frequency drive
- Tilting capabilities up to 45 degrees side to side
Specs
TECHNICAL SPECIFICATIONS
- Bodine® AC Motors, 1/6 hp, 94 rpm, 39 lb/in
- 115 volts / 1 ph / 60 hz
- Adjustable belt opening: 0” to 8“
- Belt size: 36” L x 1” H
- Floor to belt height: 35 ½” to 42”
- Machine dimensions: 38” L x 24 ½” W x 44” H
Optional
Optional
- Printhead mounting bracket
- Bottle sliding plate
- Locking casters
Warranty
Warranty
- 12 month (limited warranty)
