Stainless Steel
Inline Conveyor
- Made in the USA with 100% UL Certified components
- Available in 4.5” or 7.5” conveyor widths
- Stainless steel frame
- Up to 200 ft/min

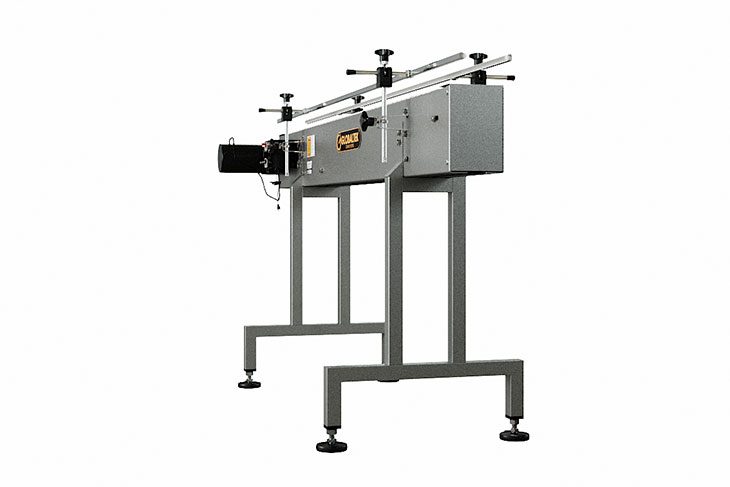

Variable Speed Inline Conveyors
GLOBALTEK™ offers a variety of inline conveyor systems that can be configured specifically for your floor plan. All conveyors feature 304 stainless steel construction, a made in the USA Bodine® motor and variable speed control. Inline conveyors are used to move containers a specific distance in a production line.

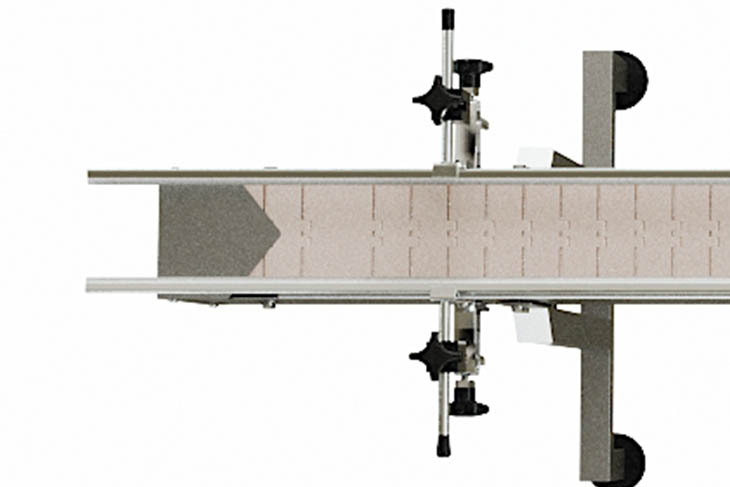

Easy to adjust rail brackets
Stainless steel transfer plates
Speed control
Leveling pads
Dual post welded legs

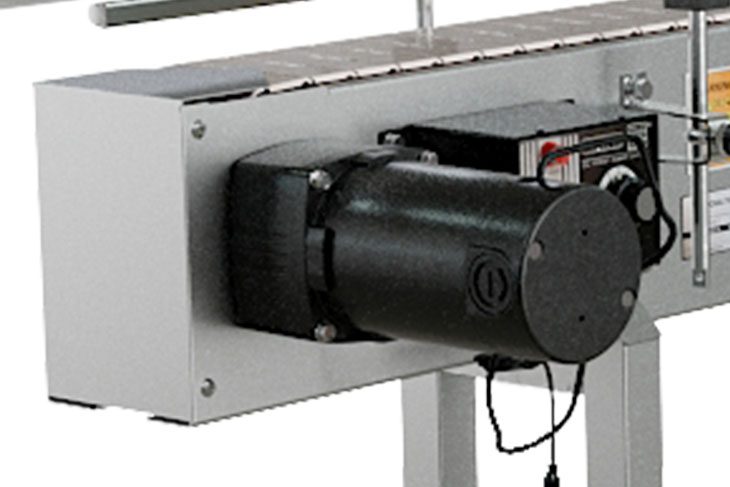

Heavy-duty motor
Features
FEATURES
- Made in the USA with 100% UL Certified components
- Available in 4.5” or 7.5” conveyor widths
- Stainless steel frame
- Up to 200 ft/min
- Transfer plates for container transitioning
- Easy to adjust rail brackets
- Low friction table top belt
Specs
TECHNICAL SPECIFICATIONS
- Bodine® DC Motor, 3/8 hp, 83 rpm, 248 lb/in
- 115 volts / 1 ph / 60 hz
- Low friction acetal (Delrin®) table top plastic belt“
- Belt widths: 4.5” or 7.5”
- Belt length: 72”
- Floor to belt height: adjustable from 35” to 40”
Optional
Optional
- Dual guide rails
- 4″ stainless steel guide rail
- Locking casters
Warranty
Warranty
- 12 month (limited warranty)
